Control Electronics



Motion Contol Systems 1100 Series

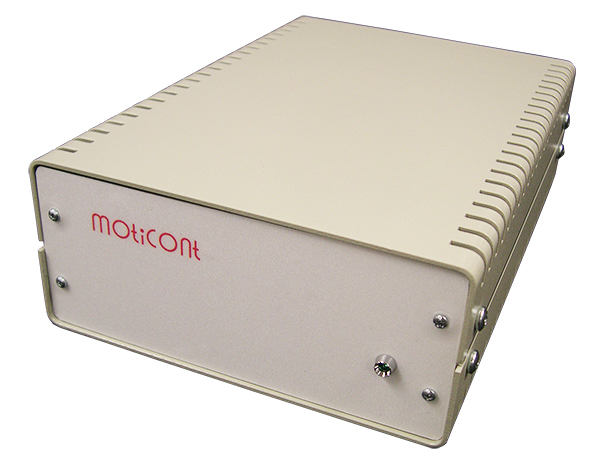

1100 Series, Motion Control

  • Motion Control System
  • Complete Package
  • Plug-and-Play
  • Quick and Easy to Install
  • Easy to Use
  • Optional Analog Inputs
  • Up to 4 Axes of Motion Control
  • Externally Controlled
  • Optional Manual Control
  • 1100 Series

    Enlargezoom


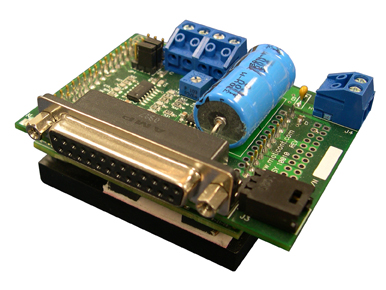

    Servo Motor Control Card


    510 Series

  • Servo Motor Control Card
  • Runs DC and Brushless Servo Motors
  • Four Quadrant Regenerative Operation
  • Space Vector Modulation (SVM) Technology
  • Fully Digital State-of-the-art Design
  • Programmable Current, Velocity and Position Loops Gain Settings
  • Fully Configurable Current, Voltage, Position Limits
  • PIDF Velocity Loop
  • Up to 40 Amps Motor Output
  • +20 VDC to +80 VDC Power Supply
  • Protected Against Over Current
  • Built-in Signal Generator, Sinusoidal, Square Wave and Triangular
  • 0 ºC to 70 ºC Operating Temperature
  • Modular 2-Piece Power, Motor, Signal Connector
  • 510 Series

    Enlargezoom


    Servo Motor Control Card


    710 Series

  • Servo Motor Control Card
  • Runs DC Servo Motors with Step and Direction Control Inputs
  • 20 Amp Motor Output
  • +18 VDC to +80 VDC Power Supply
  • PID Closed Loop Operation
  • Quadrature Encoder Feedback
  • Anti-Dithering Circuit Keeps Motor Silent
  • +5VDC, 50 ma Encoder Supply
  • Pulse By Pulse Motor Current Limiting
  • 0 to 20 Amp Current Limit Adjust Range
  • 25 KHz PWM Frequency
  • 710 Series

    Enlargezoom


    Voice Coil Motor driver


    800 Series

  • Run DC and Voice Coil Motors with PWM and Direction Control Inputs
  • 4 Amp Motor Output
  • +6 VDC to +30 VDC Power Supply
  • 0 ºC to 70 ºC Operating Temperature
  • Light: 0.36 Oz (10 gm)
  • PWM Frequency up to 40 KHz
  • 800 Series

    Enlargezoom


    Voice Coil and DC Servo Motor Driver


    950 Series

  • Voice Coil and DC Servo Motor Driver
  • Ultra Small Size
  • Runs Two Motors Simultaneously
  • Low Cost
  • Analog Signal Control Inputs
  • +6 ~ +12 VDC
  • Supplied with mounting card for easy wire connection and mounting
  • This driver does not accept feedback.
  • 950 Series

    Enlargezoom


    Inductive Filter Card


    Inductive Filter Card

  • Reduces Motor's Ripple Current
  • 10 Amps Peak
  • IFC-01

    Enlargezoom


    Optical Encoder Module


    One-micron Optical Encoder Module

  • Small Size, 1.496" (38.0 mm) by 0.551" (14.0 mm)
  • Low Profile, 0.190" (4.8 mm)
  • Low Power
  • Resolution, 0.00005", 1 micron
  • TTL Reference Point Output
  • TTL Differential Quadrature Outputs
  • Single +5 VDC Supply
  • Reflective Device
  • OEM-001U-01

    Enlargezoom


    Optical Encoder Module and Linear Scale


    1.25-micron Optical Encoder Module and Linear Scale

  • Small Size, 2.027" (51.5 mm) by 0.236" (5.99 mm)
  • Low Profile, 0.073" (0.8 mm)
  • Low Power
  • High Resolution, 0.000049", 1.25 Micron
  • TTL Quadrature Outputs
  • Single +5 VDC Supply
  • OEM-00125U-01

    Enlargezoom


    Optical Encoder Module and Linear Scale


    5.2 micron Optical Encoder Module

  • Small Size, 1.924" (48.8 mm) by 0.236" (5.99 mm)
  • Low Profile, 0.07" (1.78 mm)
  • Low Power
  • Resolution, 0.0002", 5.2 micron
  • Single +5 VDC Supply
  • Reflective Device
  • OEM-00520U-01

    Enlargezoom


    Optical Encoder Module


    Thirty-micron Optical Encoder Module

  • Small Size, 1.496" (38.0 mm) by 0.551" (14.0 mm)
  • Low Profile, 0.190" (4.8 mm)
  • Low Power
  • Resolution, 0.0012", 29.95 Micron
  • TTL Reference Point Output
  • TTL Differential Quadrature Outputs
  • Single +5 VDC Supply
  • Reflective Device
  • OEM-030U-01

    Enlargezoom


    Linear Scale


    Linear Scale

  • 1 um (0.00005") Quadrature Resolution
  • Low Cost
  • Low Power
  • LS-001U

    Enlarge zoom


    Optical Encoder Module Cable


    Optical Encoder Module Cable

  • Used with One-micron Optical Encoder Module
  • Used with Thirty-micron Optical Encoder Module
  • CBL-01

    Enlargezoom


    Optical Encoder Module Cable


    Optical Encoder Module Cable

  • Used with Optical Encoder Module OEM-001U-01 or OEM-030U-01
  • Used as an adapter to convert the existing connector on the board to a female DB9 connector
  • CBL-04

    Enlargezoom


    Optical Encoder Module Cable


    Cable-05

  • The CBL-05 is used to connect the motor driven positioning gantry stages to the 1100 Series of Motion Controllers.
  • CBL-05

    Enlargezoom


    Optical Encoder Module Cable


    Optical Encoder Module Cable

  • Used with Thirteen-micron Optical Encoder Module
  • Used with Twenty six-micron Optical Encoder Module
  • CBL-06

    Enlargezoom


    Cable for Encoders & Stages



  • Cable, 12 inch (30 cm)
  • Used with 510 Series
  • This cable is used to interface the VCDS series stages with servo controller/driver.

  • CBL-09

    EnlargeZoom


    Motor Cable


    CBL-11 - Motor Cable

  • The CBL-11 is used to connect the VCDS series Stages to 1100 Controllers.
  • Cable Length= 4 ft min (120 cm)
  • CBL-11


    Optical Encoder


    Twenty Six Micron Optical Encoder

  • Low Power
  • Resolution, 26 micron
  • TTL Quadrature Outputs
  • Single +5 VDC Supply
  • Transmissive Device
  • OEM-250

    Enlargezoom


    Optical Encoder


    Thirteen Micron Optical Encoder

  • Low Power
  • Resolution, 13 micron
  • TTL Quadrature Outputs
  • Single +5 VDC Supply
  • Transmissive Device
  • OEM-500

    Enlargezoom


    Linear Strip



    Linear Strip, 500 Lines per Inch

    LS-250

    Enlargezoom


    Linear Strip

    Linear Strip, 500 Lines per Inch

    LS-500

    Enlargezoom/


    Switch Selector


    Switch Selector

    • 8-Position Switch Selector
    • 6 Feet (180 cm) of Cable Length
    SW8-01

    Enlargezoom
