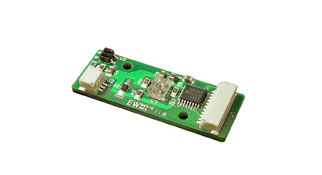

Thirty-micron Optical Encoder Module and Linear Scale

  • Small Size, 1.496" (38.0 mm) by 0.551" (14.0 mm)
  • Low Profile, 0.190" (4.8 mm)
  • Low Power
  • High Resolution, 0.0012", 29.95 Micron
  • TTL Reference Point Output
  • TTL Differential Quadrature Outputs
  • Single +5 VDC Supply
  • OEM-030U-01
    Datasheet in PDFDatasheet in PDF

    Enlarge zoom

    Drawing quick view


    Linear scales used with OEM-030U-01



    Linear Scale

  • 30 um (0.0004") Quadrature Resolution
  • Low Cost
  • This product is sold in 3.00 inch (76.2 mm) length. Other lengths are available upon request

  • LS-030U-01

    J1 Pin Assignment

    Pin

    Description

    1

    A+ Channel of Quadrature Encoder

    2

    A- Channel of Quadrature Encoder

    3

    B+ Channel of Quadrature Encoder

    4

    B- Channel of Quadrature Encoder

    5

    Reference Signal, Active High

    6

    +5 VDC Power

    7

    Return for +5 VDC Power

    8

    Connect to chassis if the following pins carry motor current

    9

    Connected to J2-1

    10

    Connected to J2-2

    11

    Connected to J2-2

    J2 Pin Assignment

    Pin

    Description

    1

    Connected to J1-9

    2

    Connected to J1-10
    3 Connected to J1-11
