Motorized Linear Stages


Voice Coil Driven StageVoice Coil Driven StageVoice Coil Driven StagesVoice Coil Driven Stages

The high performance compact positioning voice coil driven linear stages are used in positioning applications where high speed, high acceleration or high accuracy is required.


The motorized linear stages are fully self-contained. Each stage utilizes one or two voice coil motor(s),  a linear carriage system,  an optical quadrature encoder feedback device and a home switch. The standard positioning resolutions of 1 micron through 29.95 microns are available for immediate delivery.  Other resolutions are available upon request.


Range of motion is from 0.50” (12.7 mm) through 5.20” (132.1 mm). Continuous (stall) forces range from 1 lb (4.5 N) through 23.0 lb (102 N). The intermittent forces at 10% duty cycle are from 3.1 lb (13.8 N) through 73 lb (323 N).

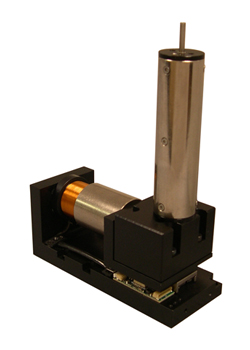

The stages may be stacked in XY, XZ and XYZ configurations.


Videos of Motorized Linear Stages:

Video of Motorized Linear Stage By Moticont Video of Two-axis Voice Coil Motor Stage by MOTICONT Video of SINGLE-AXIS Positioning Linear Motor Stage by MOTICONT

Motorized Linear Stages Catalog in PDF

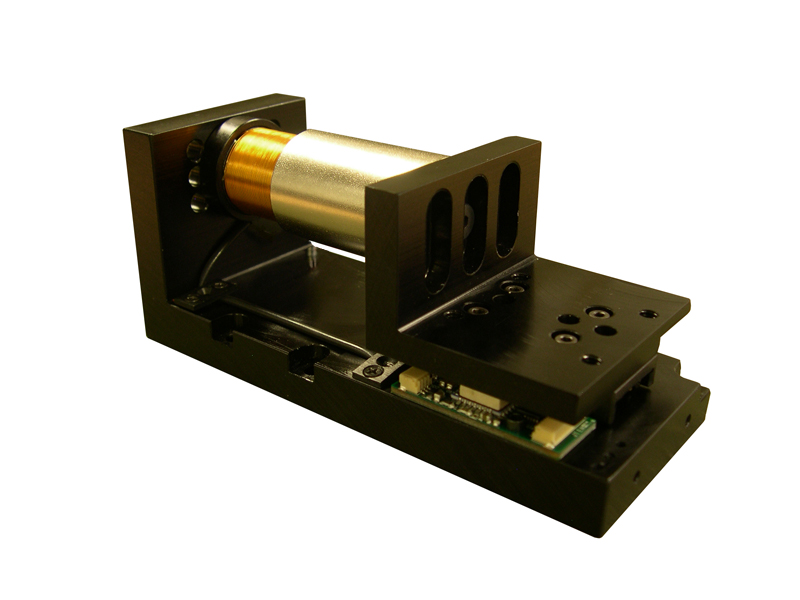

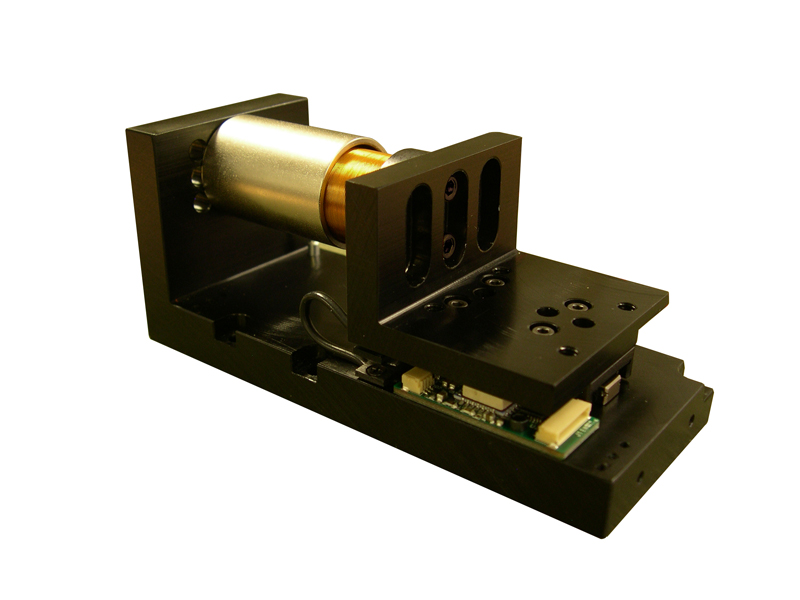

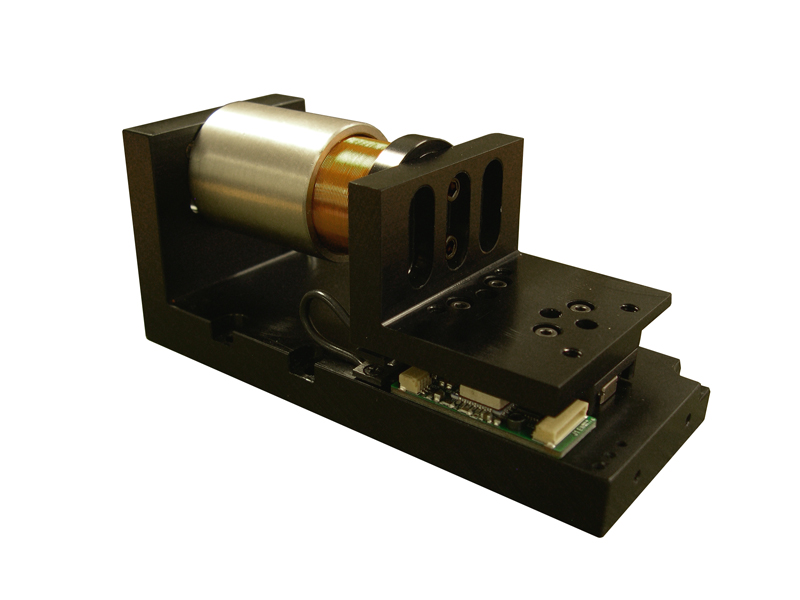

Voice Coil Driven Stage VCDS-025-038-02



Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Positioning Resolution: 1 through 29.95 microns
  • Continuous Force: 1.0 lb (4.6 N)
  • Intermittent Force: 3.2 lb (14.4 N) at 10% duty cycle
  • Optional Return Spring
  • Cross Roller or Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch
  • VCDS-025-038-02 Series

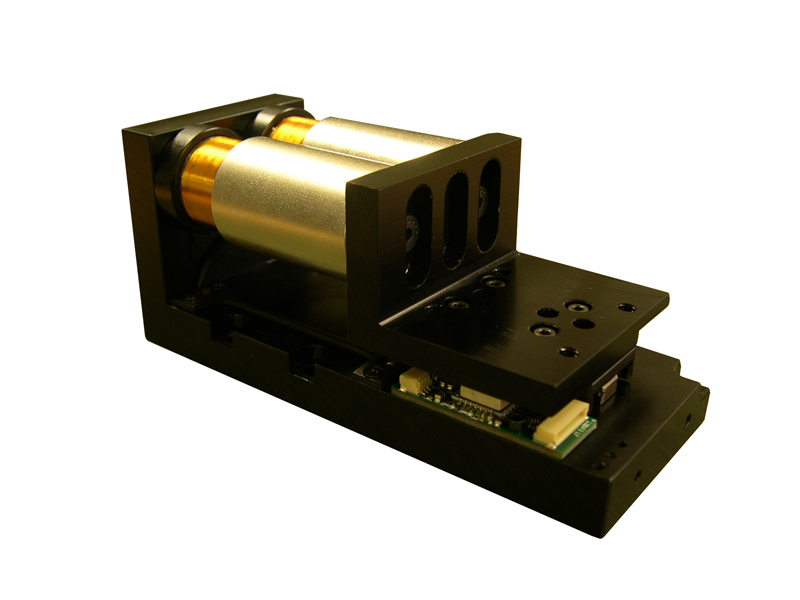

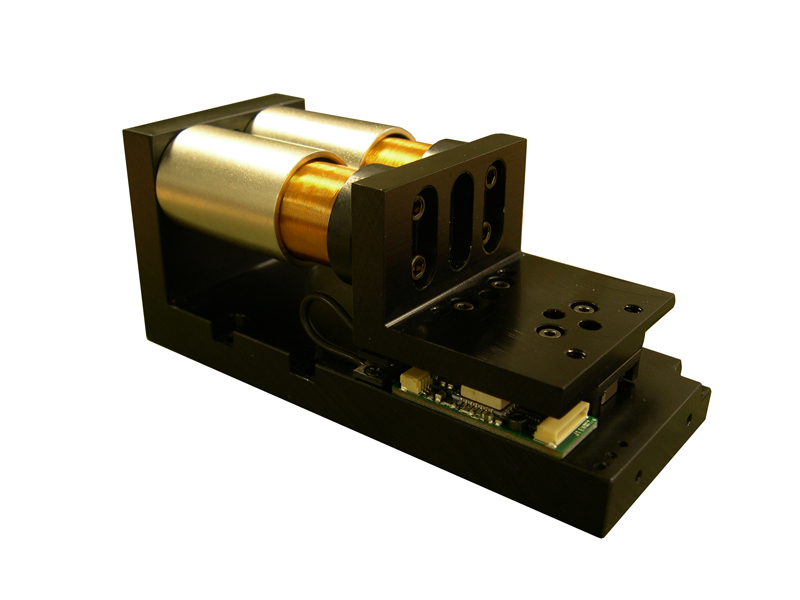

    Voice Coil Driven Stage VCDS-025-038-02



    Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Positioning Resolution: 1 through 29.95 microns
  • Continuous Force: 2.0 lb (9.2 N)
  • Intermittent Force: 6.4 lb (28.8 N) at 10% duty cycle
  • Optional Return Spring
  • Cross Roller or Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch
  • VCDS-025-038-02 Series - Dual Motor

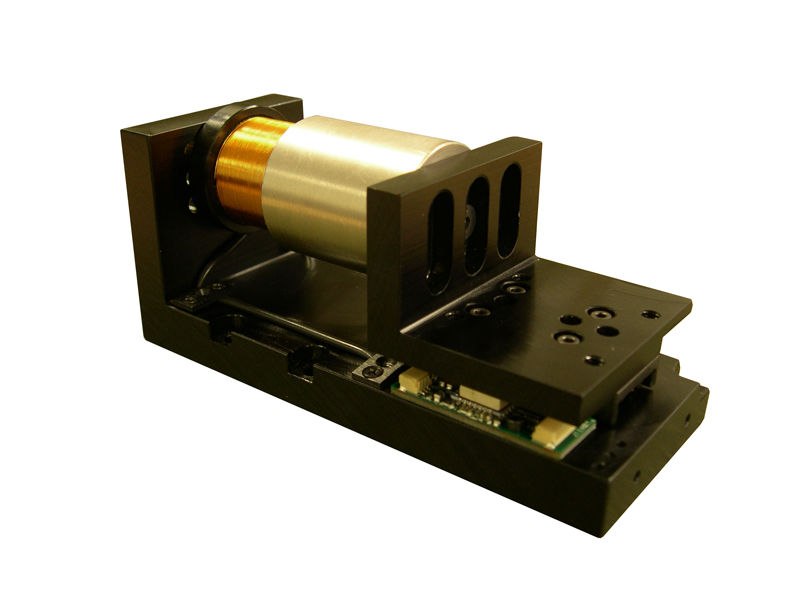

    Motorized Linear Stages VCDS-032-038-02



    Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Positioning Resolution: 1 through 29.95 microns
  • Continuous Force: 1.9 lb (8.3 N)
  • Intermittent Force:  5.9 lb (26.1 N) at 10% duty cycle
  • Optional Return Spring
  • Cross Roller or Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch
  • VCDS-032-038-02 Series

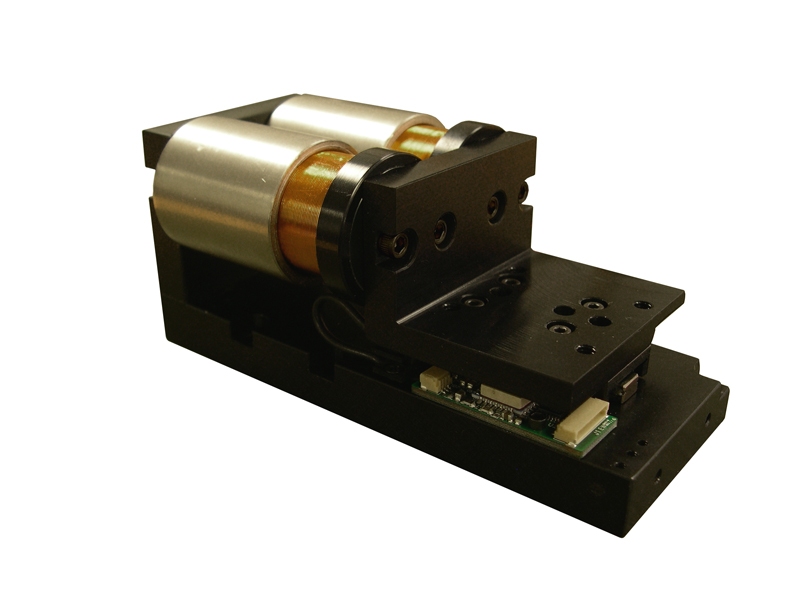

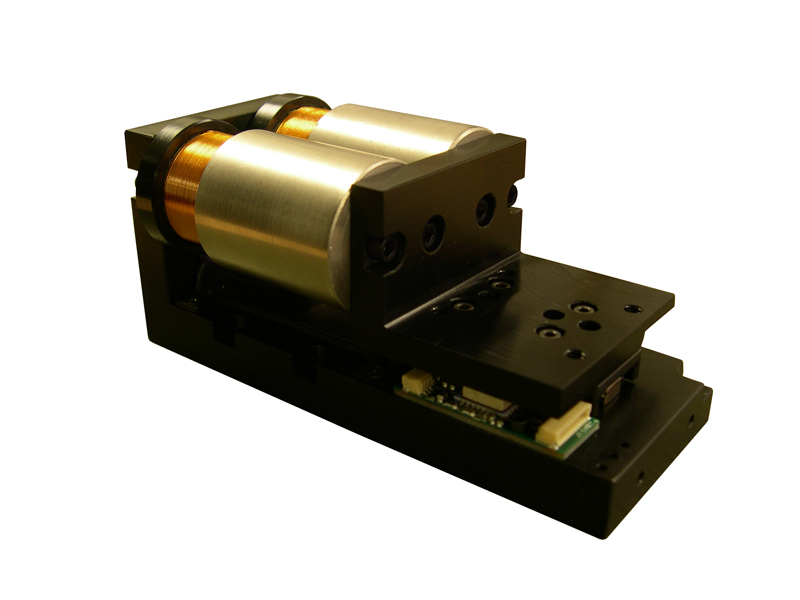

    Motorized Linear Stages VCDS-032-038-02



    Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Positioning Resolution: 1 through 29.95 microns
  • Continuous Force: 3.8 lb (16.6 N)
  • Intermittent Force: 11.8 lb (52.2 N) at 10% duty cycle
  • Optional Return Spring
  • Cross Roller or Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch
  • VCDS-032-038-02 Series - Dual Motor

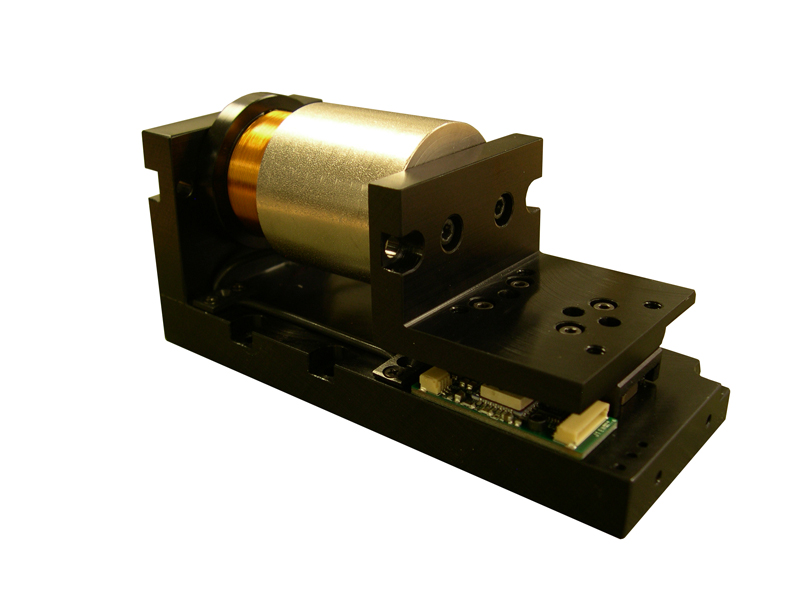

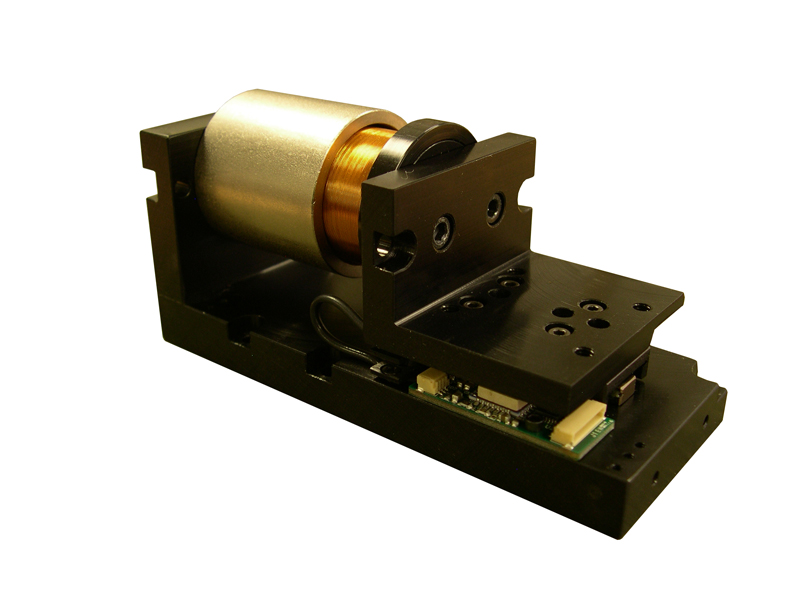

    Motorized Linear Stages VCDS-038-038-01



    Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Efficient Force within First 0.750" (19.1 mm) of Stroke
  • Positioning Resolution: 1 through 29.95 microns
  • Continuous Force: 3.0 lb (13.4 N)
  • Intermittent Force:  9.5 lb (42.5 N) at 10% duty cycle
  • Optional Return Spring
  • Cross Roller or Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch
  • VCDS-038-038-01 Series

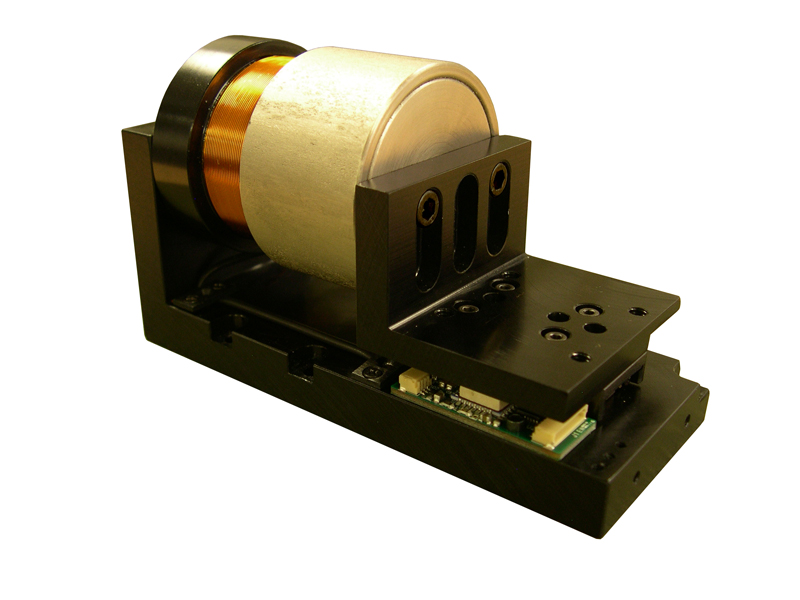

    Motorized Linear Stages VCDS-051-032-01



    Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.97” (24.6 mm)
  • Efficient Force within First 0.750" (19.1 mm) of Stroke
  • Positioning Resolution: 1 through 29.95 microns
  • Continuous Force: 6.3 lb (28.2 N)
  • Intermittent Force:  20.0 lb (89.9 N) at 10% duty cycle
  • Optional Return Spring
  • Cross Roller or Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch
  • VCDS-051-032-01 Series

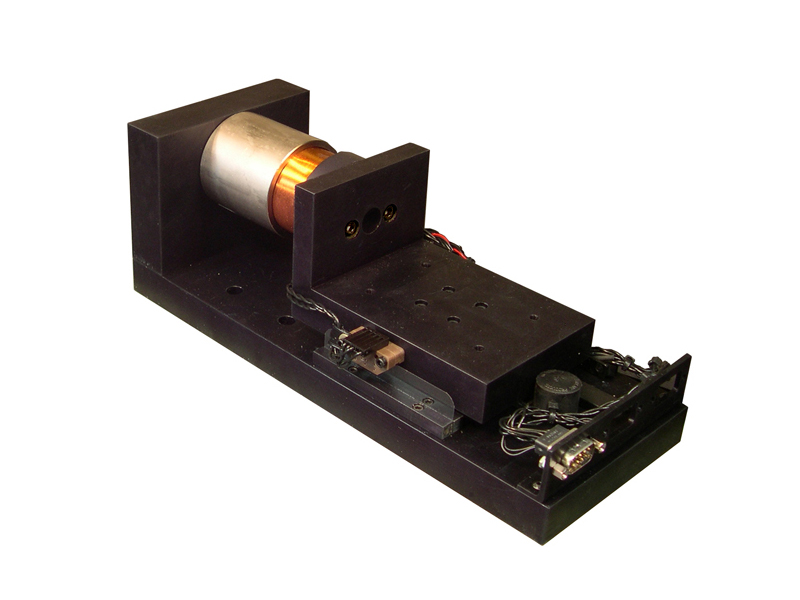

    Motorized Linear Stages VCDS-051-051-01



    Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 0.70” (17.8 mm)
  • Positioning Resolution: 1 through 29.95 microns
  • Continuous Force: 6.0 lb (26.7 N)
  • Intermittent Force: 19 lbs (84.3 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch
  • VCDS-051-051-01 Series

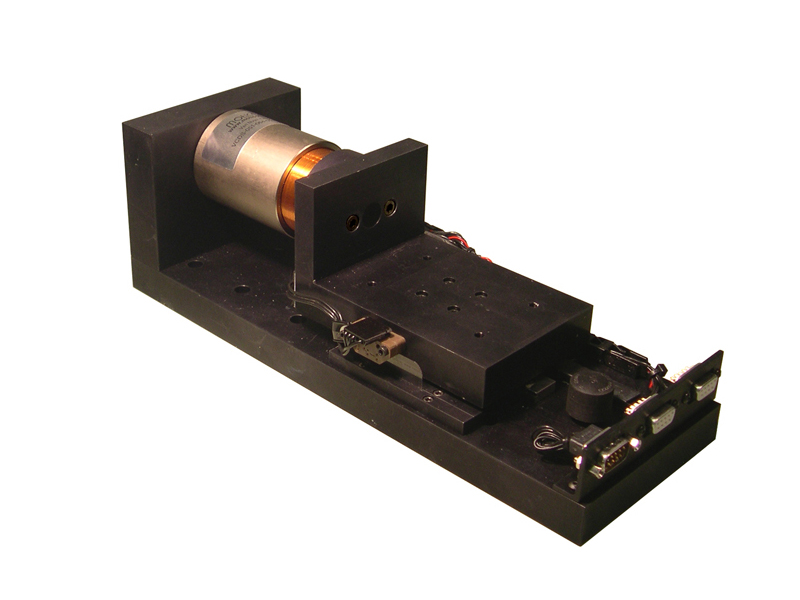

    Motorized Linear Stages VCDS-051-064-01


    Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 1.20” (30.5 mm)
  • Positioning Resolution: 1 through 29.95 microns
  • Continuous Force: 6.4 lb (28.4 N)
  • Intermittent Force: 20.2 lbs (89.9 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch
  • VCDS-051-064-01 Series

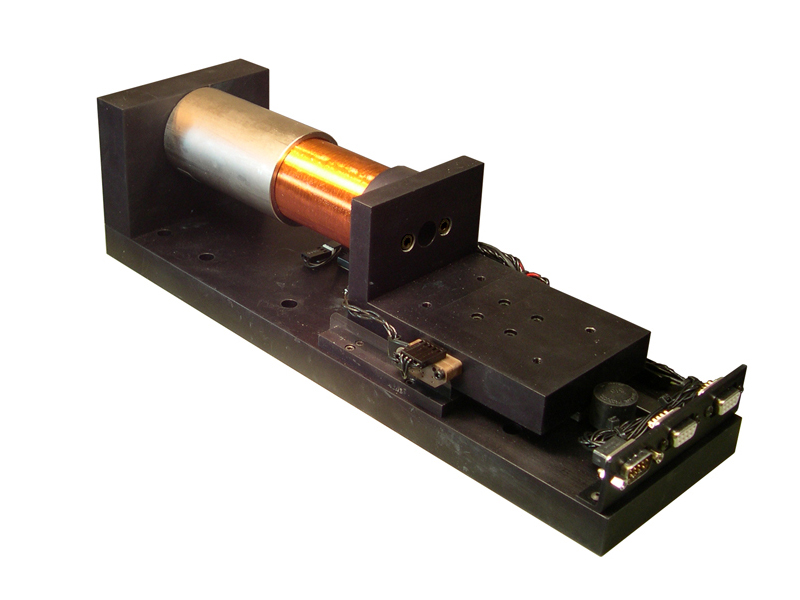

    Motorized Linear Stages VCDS-051-089-01



    Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 2.20” (55.9 mm)
  • Positioning Resolution: 1 through 29.95 microns
  • Continuous Force: 6.0 lb (26.7 N)
  • Intermittent Force: 19 lbs (84.3 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch
  • VCDS-051-089-01 Series

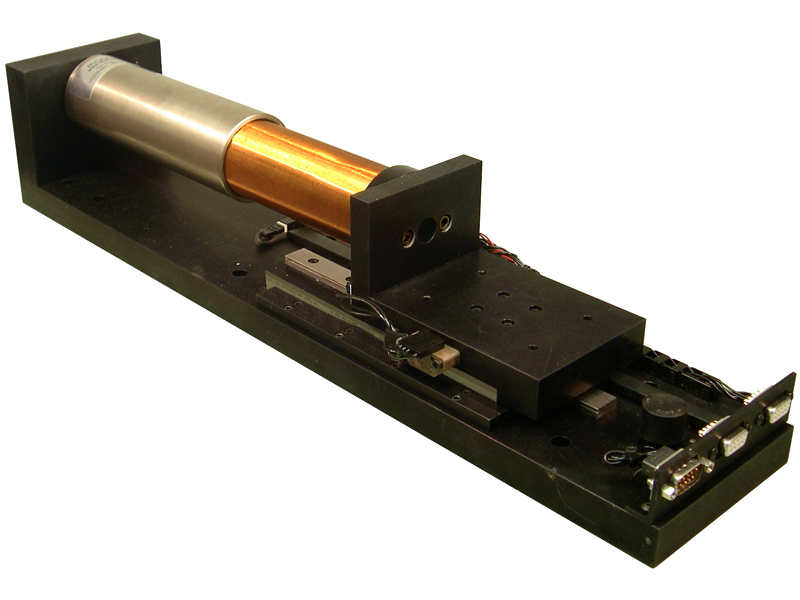

    Motorized Linear Stages VCDS-051-165-01



    Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch

  • Range of Motion: 5.20” (132.1 mm)
  • Positioning Resolution: 1 through 29.95 microns
  • Continuous Force: 4.8 lb (21.5 N)
  • Intermittent Force: 15.3 lbs (68.1 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch
  • VCDS-051-165-01 Series
