Motorized Linear Stages, VCDS-032-038-02 Series - Dual Motor




Videos of Motorized Linear Stages:

Video of Low Cost MULTI-AXIS Motorized Linear Stages Video of Two-axis Voice Coil Motor Stage by MOTICONT Video of Single-axis Positioning Linear Motor Stage by MOTICONT

Motorized Linear Stages Catalog in PDF



Comparison table
Voice Coil Driven Stage VCDS-032-038-02-B2-01

Voice Coil Driven Stage - VCDS-032-038-02-B2-01

  • Range of Motion: 0.97” (24.6 mm)
  • Positioning Resolution: 1 micron
  • Continuous Force: 3.8 lb (16.6 N)
  • Intermittent Force:  11.8 lb (52.2 N) at 10% duty cycle
  • Optional Return Spring
  • Cross Roller Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

    • Cable is not included and is sold separately
    Optional cables CBL-01 or CBL-04
    VCDS-032-038-02-B2-01

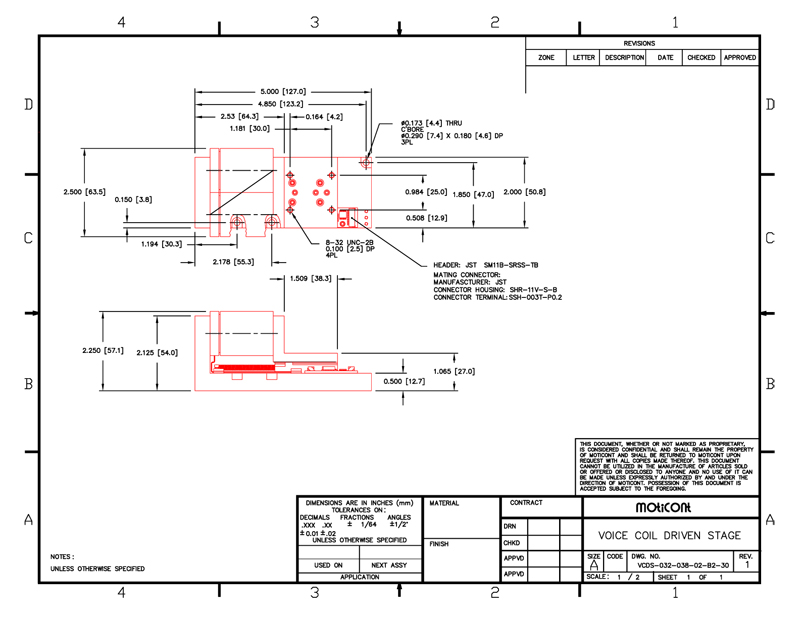

    Drawing quick view Mechanical Drawing    		 Datasheet in PDF Datasheet in PDF

    Comparison table
    Voice Coil Driven Stage VCDS-032-038-02-B2-30

    Voice Coil Driven Stage - VCDS-032-038-02-B2-30

  • Range of Motion: 0.97” (24.6 mm)
  • Positioning Resolution: 29.95 Micron
  • Continuous Force: 3.8 lb (16.6 N)
  • Intermittent Force:  11.8 lb (52.2 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

    • Cable is not included and is sold separately
    Optional cables CBL-01 or CBL-04
    VCDS-032-038-02-B2-30
    Drawing quick view Mechanical Drawing    		 Datasheet in PDF Datasheet in PDF

    Comparison table
    Voice Coil Driven Stage VCDS-032-038-02-F2-01

    Voice Coil Driven Stage - VCDS-032-038-02-F2-01

  • Range of Motion: 0.97” (24.6 mm)
  • Positioning Resolution: 1 micron
  • Continuous Force: 3.8 lb (16.6 N)
  • Intermittent Force: 11.8 lb (52.2 N) at 10% duty cycle
  • Optional Return Spring
  • Cross Roller Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

    • Cable is not included and is sold separately
    Optional cables CBL-01 or CBL-04
    VCDS-032-038-02-F2-01
    Drawing quick view Mechanical Drawing    		 Datasheet in PDF Datasheet in PDF

    Comparison table
    Voice Coil Driven Stage VCDS-032-038-02-F2-30

    Voice Coil Driven Stage - VCDS-032-038-02-F2-30

  • Range of Motion: 0.97” (24.6 mm)
  • Positioning Resolution: 29.95 microns
  • Continuous Force: 3.8 lb (16.6 N)
  • Intermittent Force: 11.8 lb (52.2 N) at 10% duty cycle
  • Optional Return Spring
  • Linear Ball Bearing
  • Quadrature Optical Encoder with Differential Outputs
  • Built-in Home Switch

    • Cable is not included and is sold separately
    Optional cables CBL-01 or CBL-04
    VCDS-032-038-02-F2-30
    Drawing quick view Mechanical Drawing    		 Datasheet in PDF Datasheet in PDF
