5.2 micron Optical Encoder Module, OEM-00520U-01



Buy Online View Cart



5.2 micron Optical Encoder Module and Linear Scale

  • Small Size, 1.924" (48.8 mm) by 0.236" (5.99 mm)
  • Low Profile, 0.07" (1.78 mm)
  • Low Power
  • High Resolution, 0.0002", 5.2 Micron
  • TTL Quadrature Outputs
  • Single +5 VDC Supply
    		•
    OEM-00520U-01
    Datasheet in PDFDatasheet in PDF

    Enlarge zoom

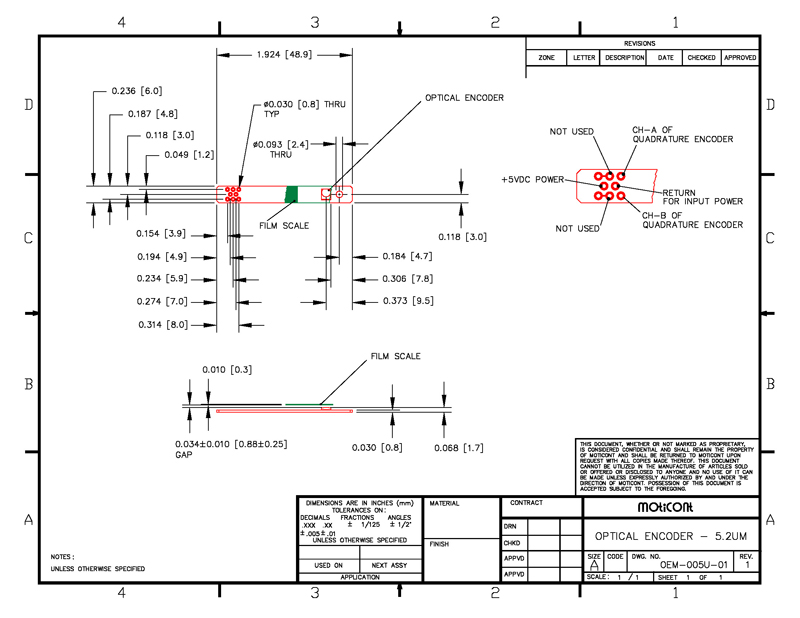

    Drawing quick view


    Linear scales used with OEM-00520U-01



    Linear Scale

  • 5.2 um (0.0002") Quadrature Resolution
  • 0.24" (6 mm) Wide, 0.01" (0.3 mm) Thick with PSA Adhesive
  • Low Cost
  • This product is sold in 3.00 inch (76.2 mm) length. Other lengths are available upon request

    		•
    LS-00520U-01
    Enlargezoom
