Linear Voice Coil Motor Actuator LVCM-038-038-02, Continuous Force: 5.6 lb (24.9N), Stroke: 0.38 in (9.5 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 1.500 inch, 38.1 mm | ||||||||
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-038-038-02 | 0.38 | inch | 5.6 | lb | 17.7 | lb | 1.50 | inch |
Datasheet in PDF  |
9.5 | mm | 24.9 | N | 78.8 | N | 38.1 | mm |

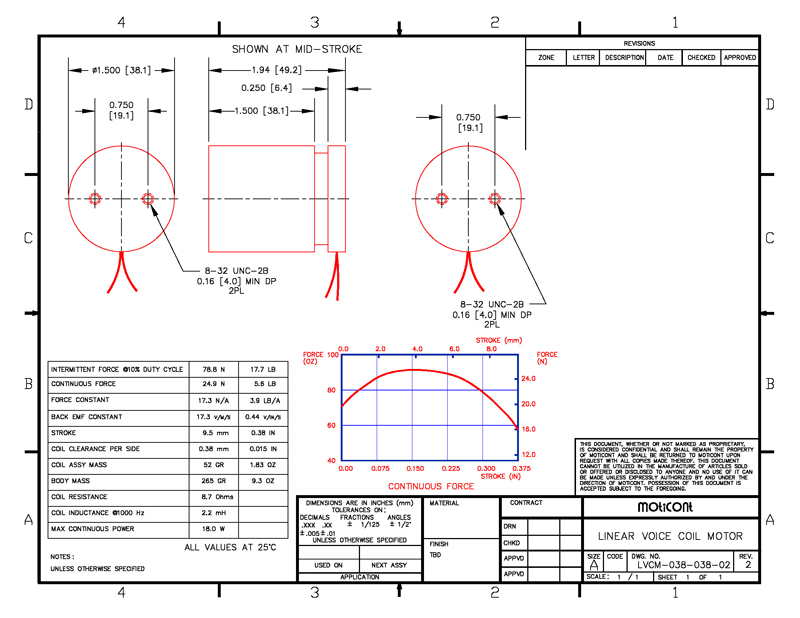

Drawing quick view
 |
Download 3D STEP | |||||||
