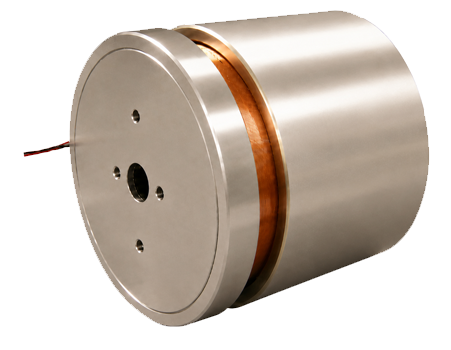

Linear Voice Coil Motor Actuator LVCM-095-064-01VAC, Vacuum Compatible, Continuous Force: 24.4 lb (108.2 N), Stroke: 1.50 in (38.2 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 3.750 inch, 95.3 mm | ||||||||
|
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-095-064-01VAC | 1.50 | inch | 24.4 | lb | 77.1 | lb | 2.50 | inch |
Datasheet in PDF  |
38.2 | mm | 108.2 | N | 342.0 | N | 63.5 | mm |

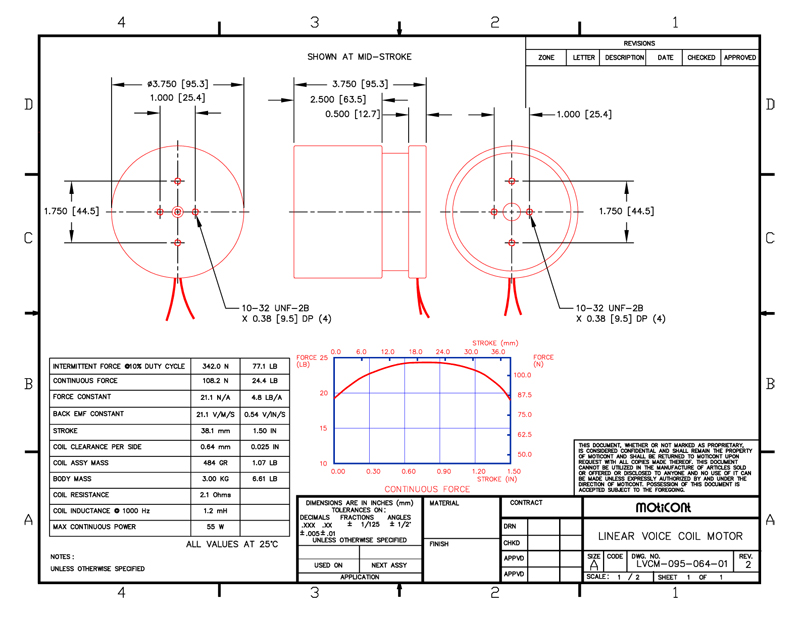

Drawing quick view
 |
Download 3D STEP | |||||||
