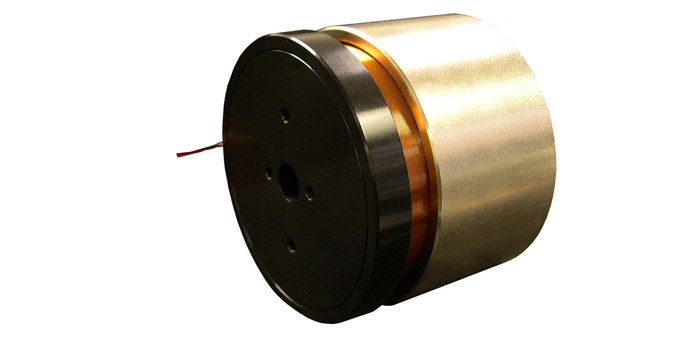

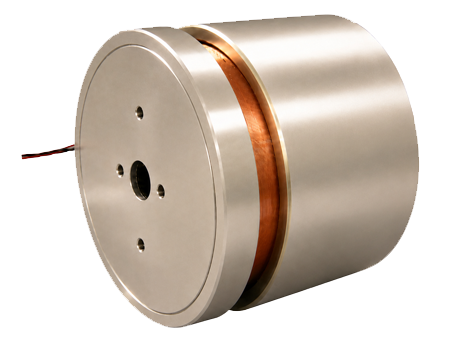

Linear Voice Coil Motor Actuator LVCM-095-051-01VAC, Vacuum Compatible, Continuous Force: 23.4 lb (104.0 N), Stroke: 1.00 in (25.4 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 3.750 inch, 95.3 mm | ||||||||
|
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-095-051-01VAC | 1.00 | inch | 23.4 | lb | 70.0 | lb | 2.0 | inch |
Datasheet in PDF  |
25.4 | mm | 104.0 | N | 328.7 | N | 50.8 | mm |

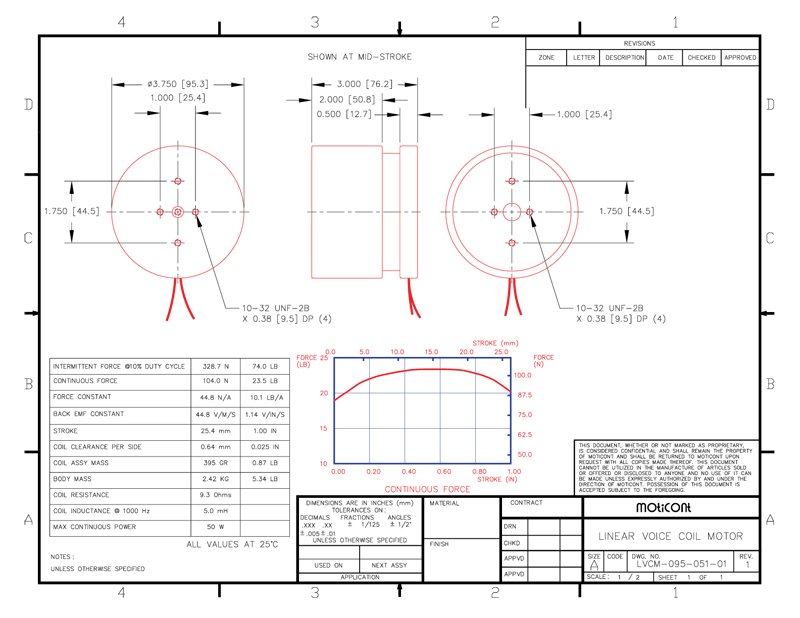

Drawing quick view
 |
Download 3D STEP | |||||||
