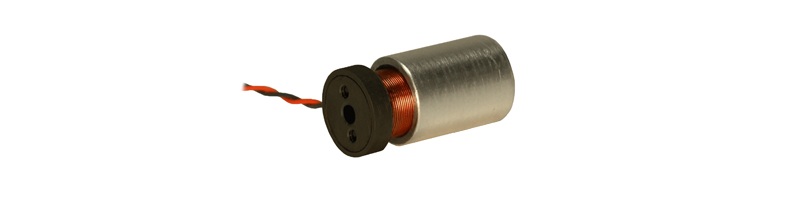

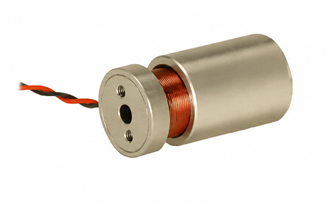

Linear Voice Coil Motor Actuator LVCM-032-038-02VAC, Vacuum Compatible, Continuous Force: 1.9 lb (8.3 N), Stroke: 1.00 in (25.4 mm)
 |
|
 |
 |
| Housing Outside Diameter, 1.250 inch, 31.8 mm | ||||||||
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-032-038-02VAC | 1.00 | inch | 1.9 | lb | 5.9 | lb | 1.50 | inch |
Datasheet in PDF  |
25.4 | mm | 8.3 | N | 26.1 | N | 28.6 | mm |

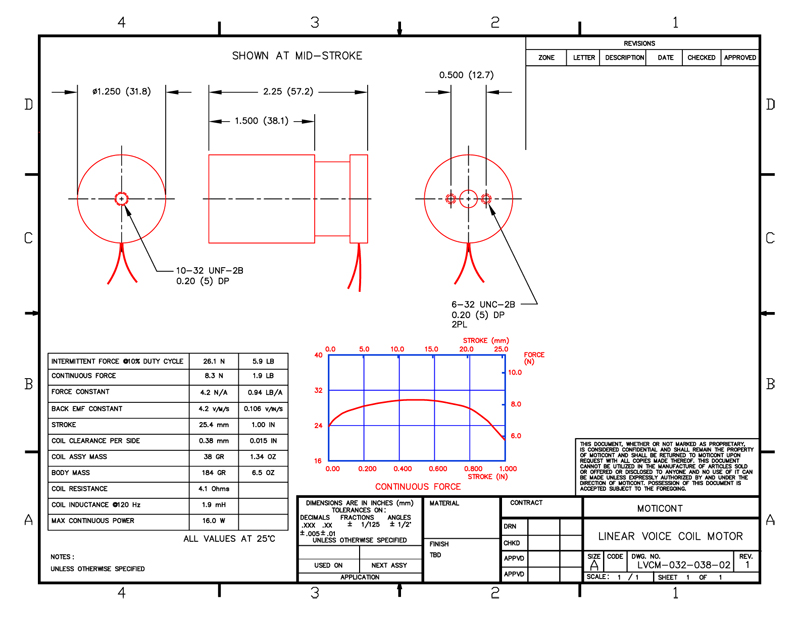

Drawing quick view
 |
Download 3D STEP | |||||||
