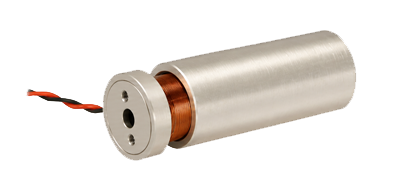

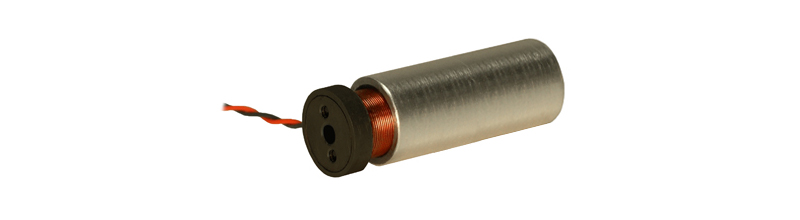

LVCM-032-076-02VAC Vacuum-Compatible Linear Voice Coil Motor
Stroke: 2.50 in (63.5 mm) | Continuous Force: 1.8 Lb (8.0 N) | Intermittent Force: 5.7 Lb (25.3 N)
 |
|
 |
 |
| Housing Outside Diameter, 1.250 inch, 31.8 mm | ||||||||
|
||||||||
Product OverviewThe LVCM-032-076-02VAC is a vacuum-compatible linear voice coil motor designed for fast, precise, short-stroke motion in low-pressure equipment. Its compact housing measures 1.250 in (31.8 mm) in outside diameter and 3.0 in (76.2 mm) in length, while providing 2.50 in (63.5 mm) of linear travel.Performance and Vacuum-Compatible ConstructionThe motor delivers 1.8 Lb (8.0 N) of continuous force and 5.7 Lb (25.3 N) of intermittent force at a 10% duty cycle. Its brushless, non-commutated direct-drive construction provides smooth bidirectional force, zero cogging, rapid acceleration and deceleration, quiet operation, and long service life. Motor force is proportional to coil current, and reversing the current reverses the direction of force and motion.Key Features• Vacuum-compatible linear voice coil motor• 2.50 in (63.5 mm) linear stroke • 1.8 Lb (8.0 N) continuous force • 5.7 Lb (25.3 N) intermittent force at 10% duty cycle • Compact 1.250 in (31.8 mm) housing diameter • Brushless, non-commutated operation with no cogging • Direct-drive force proportional to current • High acceleration, rapid reversal, and smooth force control ApplicationsTypical applications include semiconductor and wafer-processing equipment, vacuum optical positioning, laser and electron-beam systems, thin-film and deposition equipment, inspection systems, aerospace test equipment, scientific instruments, and research apparatus requiring compact direct-drive linear motion.Vacuum-System IntegrationConfirm the required operating pressure, allowable outgassing, temperature range, bakeout procedure, cabling, and material compatibility against the product datasheet and the requirements of the vacuum system. Threaded mounting provisions support integration into new or existing equipment; refer to the mechanical drawing for exact thread sizes and dimensions.Mechanical Guidance and Closed-Loop ControlThe LVCM-032-076-02VAC generates linear force but does not provide its own mechanical guidance. The moving and stationary components must be supported by an external bearing, flexure, slide, or other guidance mechanism. For closed-loop position or velocity control, combine the motor with a vacuum-compatible position sensor, servo controller, and current amplifier. Final accuracy and repeatability depend on the sensor, guidance system, load, structural stiffness, controller, and servo tuning. |
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-032-076-02VAC | 2.50 | inch | 1.8 | lb | 5.7 | lb | 3.0 | inch |
Datasheet in PDF  |
63.5 | mm | 8.0 | N | 25.3 | N | 76.2 | mm |

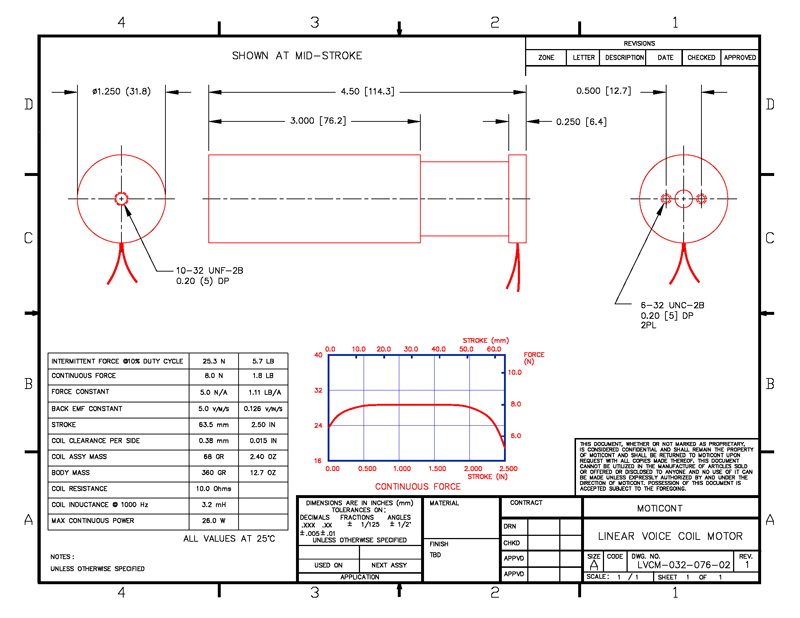

Drawing quick view
 |
Download 3D STEP | |||||||
