Linear Motor with Internal Shaft & Bearing, GVCM-032-038-02
Continuous
Force: 1.9 Lb (8.3 N), Stroke: 1.00 in (25.4 mm)
 |
 |
 |
| Housing Outside Diameter, 1.250 inch, 38.1 mm | ||||||||
|
||||||||
|
The GVCM-032-038-02M Linear Voice Coil Servo Motor with a 25.4 mm (1.00 in) stroke is a compact linear servo motor with built-in shaft and bearing and is just 31.8 mm (1.250 in) in diameter.
Also referred to as an electric cylinder, this compact linear servo actuator features a continuous high-force-to-size ratio of 8.3 N (1.9 lb) and 26.1 N (5.9 lb) of peak force at a 10 percent duty cycle.
Featuring: High reliability, high speed, zero cogging, high acceleration/deceleration, and when used in a closed servo loop, very high accuracy and repeatability. These non-commutated brushless
linear servo motors are clean and quiet. They are an
ideal choice for: Haptic feedback, pipetting, medical
devices, laser machining and drilling, work holding and clamping,
scanners, laser beam steering and filtering, optical focusing, dynamic
vibration absorption, testing, sorting, and assembly. |
||||||||
| Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| GVCM-032-038-02M | 1.00 | inch | 1.9 | Lb | 5.9 | Lb | 1.500 | inch |
Datasheet in PDF  |
25.4 | mm | 8.3 | N | 26.1 | N | 38.1 | mm |

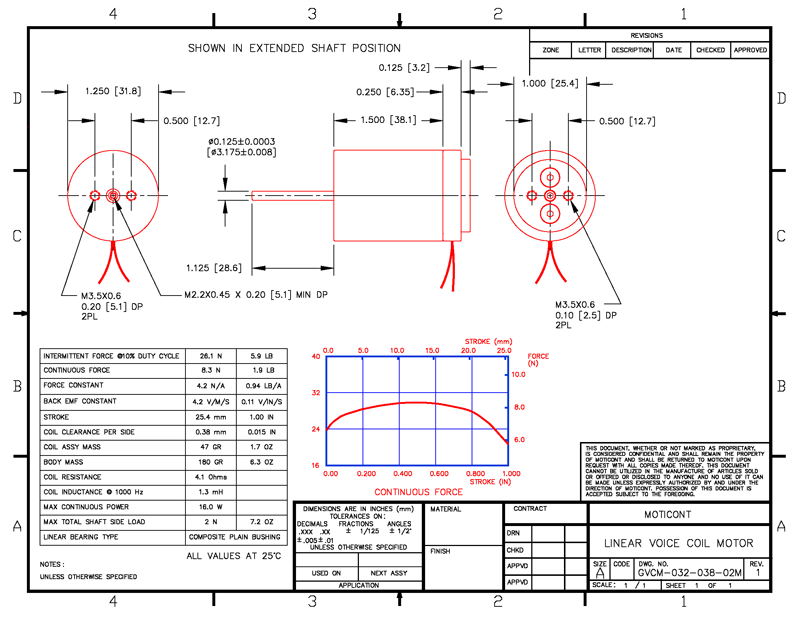

Drawing quick view
 |
||||||||
| ||||||||
