Linear Voice Coil Motor Actuator LVCM-022-013-02 - Large Radial Gap, Continuous Force: 5.9 Oz (1.6 N), Stroke: 0.25 in (6.4 mm)

Housing Outside Diameter: 0.875 inch, 22.2 mm - Large Clearance Gap

The miniature Linear Voice Coil Motor, LVCM-022-013-02, features 5.9 oz. (1.6 N) continuous force and 18.7 oz. (5.2 N) peak force in a compact 0.875 in. (22.2 mm) diameter by 0.50 in. (12.7 mm) long. These clean, quiet, efficient, low inertia, high acceleration, high speed motors have zero cogging and feature high accuracy and high repeatability when operated in a closed loop configuration as a DC servo motor. This motor is designed with a larger air gap of 0.059 in (1.5 mm). The larger air gap allows the motor to be used for: vibration, noise cancelation, photonics, gimbals, medical devices, semiconductor handling, SMT machines, assembly, wafer handling, optical focusing, dynamic vibration absorption, scanners and laser beam steering and filtering where excessive side play or tilt is required. The miniature LVCM-022-013-02 linear voice coil motor has a stroke length of 0.25 in (6.4 mm) and can be easily incorporated in to new or existing designs.
Imperial Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
LVCM-022-013-02	0.25	inch	5.9	oz	18.7	oz	0.500	inch
Datasheet in PDF	6.4	mm	1.6	N	5.2	N	12.7	mm

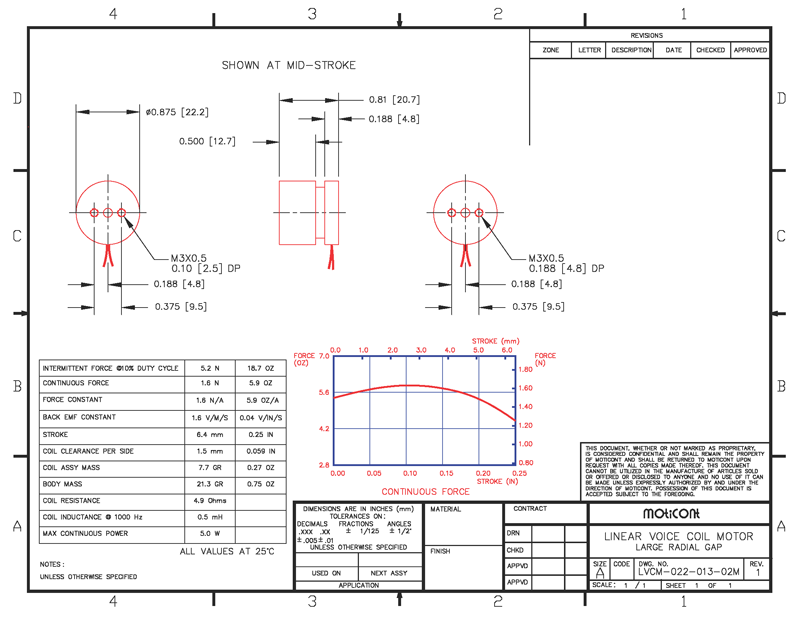

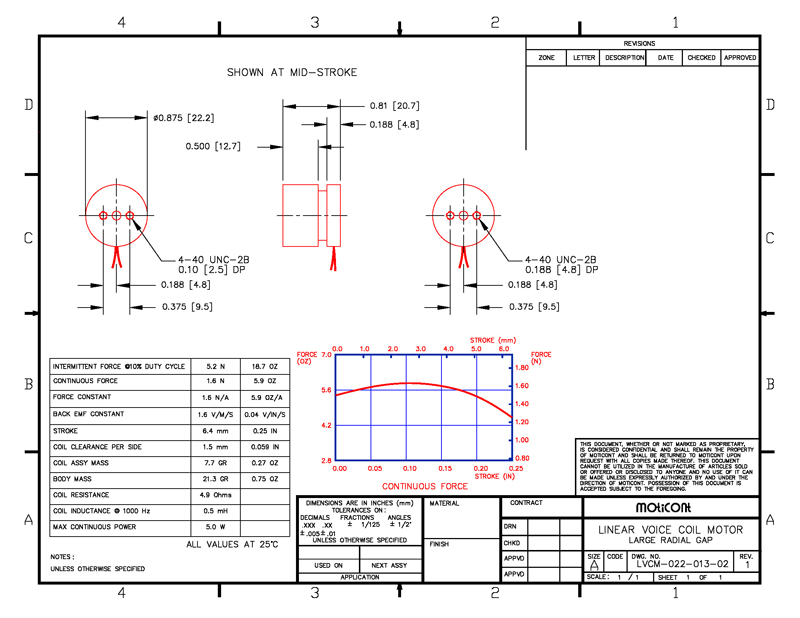

Drawing quick view	Download 3D STEP

Metric Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
LVCM-022-013-02M	0.25	inch	5.9	oz	18.7	oz	0.500	inch
Datasheet in PDF	6.4	mm	1.6	N	5.2	N	12.7	mm
Drawing quick view	Download 3D STEP
