Linear Voice Coil Motor Actuator LVCM-013-032-03M, Continuous Force: 7.9 Oz (2.20 N), Stroke: 0.50 in (12.7 mm)
 |
 |
 |
| Housing Outside Diameter, 0.500 inch, 12.7 mm | ||||||||
|
||||||||
| Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-013-032-03M | 0.50 | inch | 7.9 | oz | 25.0 | oz | 1.250 | inch |
Datasheet in PDF  |
12.7 | mm | 2.20 | N | 6.95 | N | 31.8 | mm |

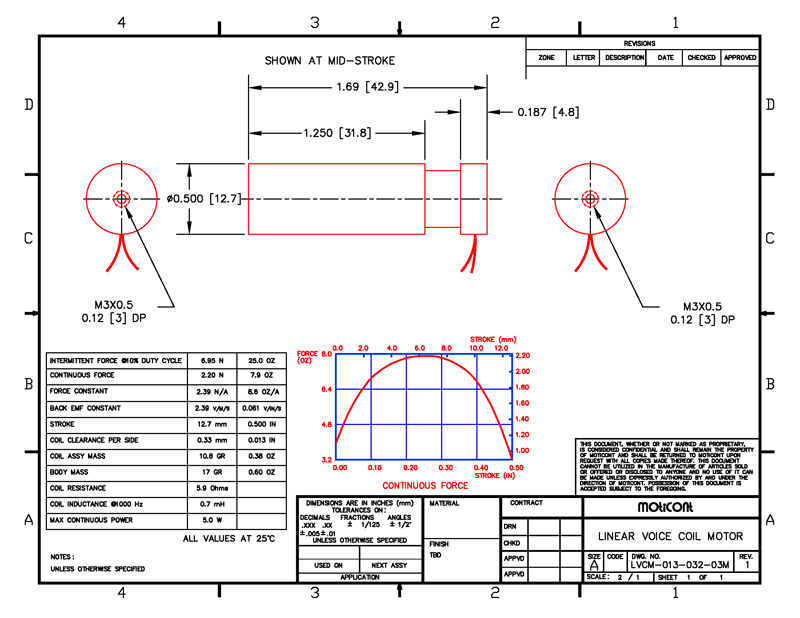

Drawing quick view
 |
Download 3D STEP |
|||||||
| ||||||||
