Linear Voice Coil Motor Actuator LVCM-013-008-02, Continuous Force: 2.9 oz (0.80 N), Stroke: 0.125 inch (3.2 mm)

Housing Outside Diameter, 0.500 inch, 12.7 mm

Product Overview The LVCM-013-008-02 is a miniature brushless linear voice coil motor designed for fast, precise, bidirectional motion. It provides a 0.125 inch (3.2 mm) stroke, 2.9 oz (0.80 N) of continuous force, and 9.1 oz (2.53 N) of intermittent force at a 10% duty cycle. The housing measures 0.500 inch (12.7 mm) in outside diameter and 0.313 inch (8.0 mm) long. Performance and Construction The non-commutated direct-drive design produces force proportional to coil current and reverses direction when current polarity is reversed. With no brushes, gears, lead screws, or mechanical transmission components, the motor provides smooth force control, zero cogging, rapid acceleration and deceleration, quiet operation, and long service life. Direct coupling to the load eliminates transmission backlash. Key Features • 0.125 inch (3.2 mm) bidirectional linear stroke • 2.9 oz (0.80 N) continuous force • 9.1 oz (2.53 N) intermittent force at 10% duty cycle • Brushless, non-commutated operation with no cogging • Direct-drive response with zero mechanical backlash when coupled directly to the load • Smooth force proportional to input current • High acceleration, rapid reversal, and low mechanical wear • Threaded mounting provisions for straightforward system integration Applications Medical and Laboratory Equipment: Haptic interfaces, diagnostic instruments, sampling systems, pharmaceutical equipment, and laboratory automation. Optical and Laser Systems: Beam steering, focusing, scanning, filtering, laser machining, and precision optical positioning. Semiconductor Equipment: Wafer handling, inspection, alignment, and other short-stroke precision processes. Vibration and Force Control: Active damping, dynamic force generation, test equipment, and vibration cancellation. Mechanical Integration and Closed-Loop Control The LVCM-013-008-02 generates linear force but does not provide its own mechanical guidance. The moving and stationary components should be supported by an external bearing, flexure, slide, or other guidance mechanism. For position, velocity, or programmed motion control, combine the motor with a suitable position sensor, servo controller, and current amplifier. Final accuracy and repeatability depend on the feedback sensor, guidance system, load, structural stiffness, controller, and servo tuning.
Metric Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
LVCM-013-008-02M	0.125	inch	2.9	oz	9.1	oz	0.313	inch
Datasheet in PDF	3.2	mm	0.80	N	2.53	N	8.0	mm

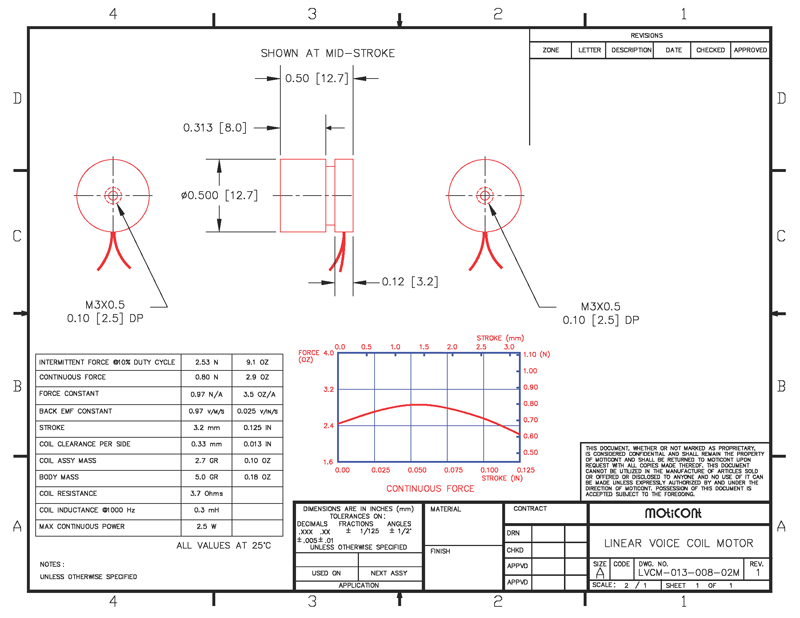

Drawing quick view
