Linear Brushless Ironless Motors, LBIM-032-02
 |
 |
|
|||||||||||||||||||||||
Drawing in PDF
|
|||||||||||||||||||||||
| Datasheet in PDF
|
Drawing quick view
|
||||||||||||||||||||||
| ||||
|
Intermittent Force @ 10% Duty Cycle |
55.3 |
lb |
||
|
246.1 |
N |
|||
|
Continuous Force @ 25 °C |
17.5 |
lb |
||
|
77.9 |
N |
|||
|
Continuous Force @ Tmax |
15.0 |
lb |
||
|
66.7 |
N |
|||
|
Continuous Power |
66 |
W |
||
|
Motor Constant |
2.2 |
lb/W^0.5 |
||
|
9.6 |
N/ W^0.5 |
|||
|
Coil Assembly Length |
6.35 |
in |
||
|
1.61 |
mm |
|||
| ELECTRICAL SPECIFICATIONS | ||
|
Peak Current @ 10% Duty Cycle |
11.0 |
A |
|
Continuous Current @ Tmax |
3.0 |
A |
|
Force Constant |
5.0 |
lb/A |
|
22.2 |
N/A |
|
|
Back EMF |
0.6 |
V/in/s |
|
22.2 |
V/m/s |
|
|
Resistance @ 25 °C |
5.5 | Ohm |
| Inductance @ 1 KHz | 1.9 | mH |
| Part No. | Description |

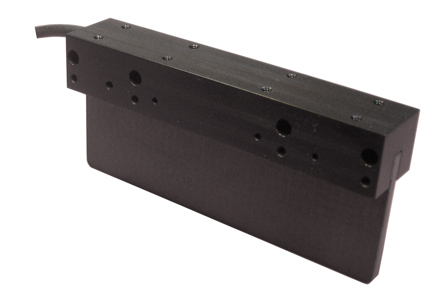

| LBF-032-048-161-01 |
Forcer, Continuous: Force 17.5 lb (77.9 N), Intermittent Force @ 10% Duty Cycle: 55.3 lb (246.1 N)
|
 |
|
|
One or a combination of the following magnetic tracks is required. |
|
| Part No. | Description |
| LBM-032-057-121-01 |
Magnetic
Track, Length: 4.75 in (121 mm), Width: 1.25 in, (32 mm), Height:2.25 in (57 mm)
|
 |
|
| LBM-032-057-243-01 |
Magnetic
Track, Length: 9.55 in (243 mm), Width: 1.25 in, (32 mm), Height:2.25 in (57 mm)
|
|
|
|
| LBM-032-057-365-01 |
Magnetic
Track, Length: 14.35 in (365 mm), Width: 1.25 in, (32 mm), Height:1.50 in (57
mm)
|
|
|
|
| LBM-032-057-608-01 |
Magnetic
Track, Length: 23.95 in (608 mm), Width: 1.25 in, (32 mm), Height:1.50 in (57
mm)
|
|
|
