1.25-micron Optical Encoder Module, OEM-00125U-02



Buy Online View Cart





1.25-micron Optical Encoder Module and Linear Scale

  • Low Profile, 0.073" (0.8 mm)
  • Low Power
  • High Resolution, 0.000049", 1.25 Micron
  • TTL Quadrature Outputs
  • Single +5 VDC or 3.3 VDC Supply
    		•
    OEM-00125U-02
    Datasheet in PDFDatasheet in PDF

    Enlarge zoom

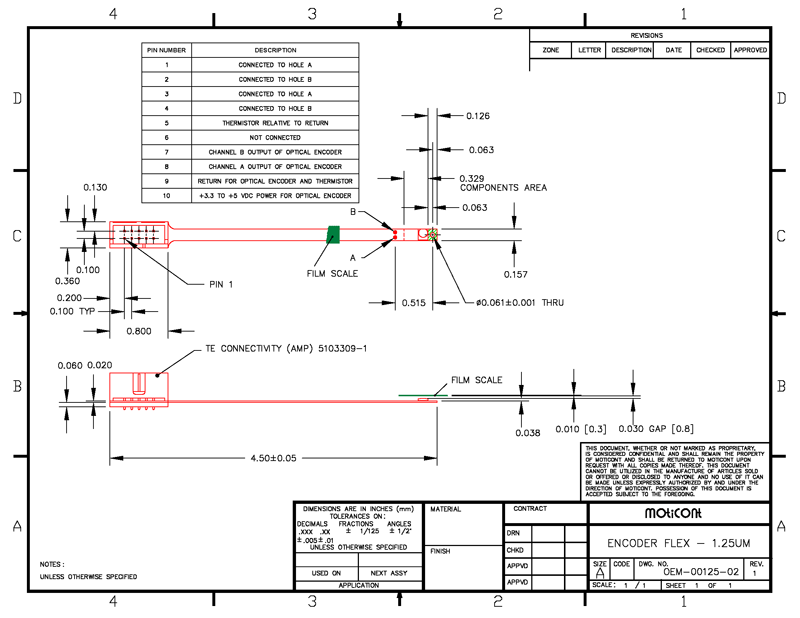

    Drawing quick view
    The OEM-00125U-02 Linear Optical Encoder Module and LS 00125U-01 Linear Scale provide incremental positon information. The compact linear encoder module with flexible cable measures just 110.3 mm (4.5 in.) long. This high, 1.25 micron resolution, low power encoder module features TTL Quadrature Outputs and requires only a single +3.3 or +5 VDC supply.

    Available in OEM quantities they can also be used for in-house purpose built: Assembly, sorting, measuring, and inspection equipment.

    Linear scales used with OEM-00125U-01



    Linear Scale

  • Low Cost
  • 0.24" (6 mm) Wide, 0.01" (0.3 mm) Thick with PSA Adhesive
  • This product is sold in 3.00 inch (76.2 mm) length. Other lengths are available upon request

    		•
    LS-00125U-01
