1.25-micron Optical Encoder Module and Linear Scale

  • Small Size, 2.027" (51.5 mm) by 0.236" (5.99 mm)
  • Low Profile, 0.073" (0.8 mm)
  • Low Power
  • High Resolution, 0.000049", 1.25 Micron
  • TTL Quadrature Outputs
  • Single +5 VDC Supply
    		•
    OEM-00125U-01
    Datasheet in PDFDatasheet in PDF

    Enlarge zoom

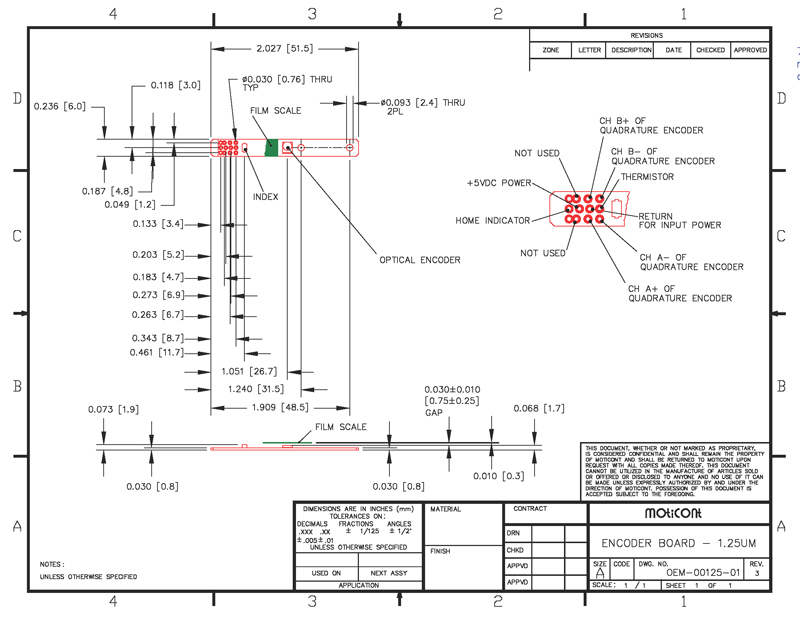

    Drawing quick view
    The OEM-00125U-01 Linear Optical Encoder Module and LS 00125U-01 Linear Scale providing direction, velocity. The compact linear encoder module measures just 51.5 mm (2.027 in.) long by 5.99 mm (0.236 in.) wide by 0.8 mm (0.073 in.) high. This high, 1.25 micron resolution, low power encoder module features TTL Quadrature Outputs and requires only a single +3.3 or +5 VDC supply.

    The LS-00125U-01 Linear Scale supplied is only 6 mm (0.24 in.) wide by 0.3 (0.01 in.) high and would be attached to a flat surface using PSA adhesive. The standard scale length is 76.2 mm (3.00 in.) long. The linear scale is available with lengths up to 610.0 mm (24.00 in.). The quadrature signals are output differentially. The module also features a TTL level HOME output.

    The encoder with resolution of  1.25 microns are ideal for use with Moticont’s LVCM, GVCM linear voice coil motors and HVCM hollow core voice coil linear motors, and controllers. Available in OEM quantities they can also be used for in-house purpose built: Assembly, sorting, measuring, and inspection equipment.

    Linear scales used with OEM-00125U-01



    Linear Scale

  • Low Cost
  • 0.24" (6 mm) Wide, 0.01" (0.3 mm) Thick with PSA Adhesive
  • This product is sold in 3.00 inch (76.2 mm) length. Other lengths are available upon request

    		•
    LS-00125U-01
    Enlargezoom
