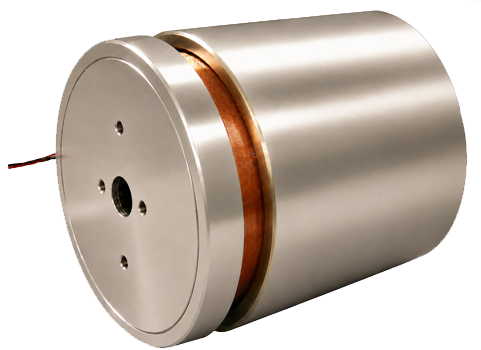

Linear Voice Coil Motor Actuator LVCM-095-089-01VAC, Vacuum Compatible, Continuous Force: 25.0 lb (111.2 N), Stroke: 2.50 in (63.5 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 3.750 inch, 95.3 mm | ||||||||
|
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-095-089-01VAC | 2.50 | inch | 25.0 | lb | 79 | lb | 3.50 | inch |
Datasheet in PDF  |
63.5 | mm | 111.2 | N | 351.3 | N | 88.9 | mm |

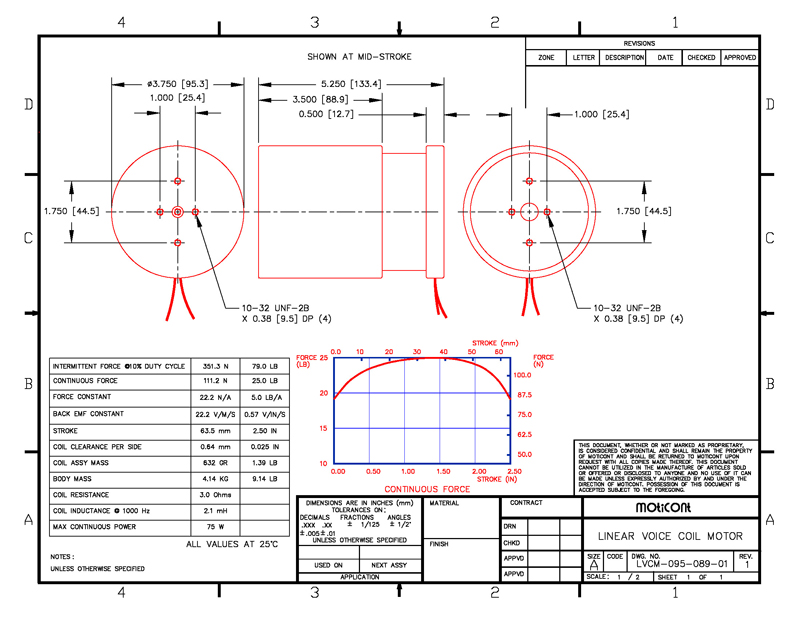

Drawing quick view
 |
Download 3D STEP | |||||||
