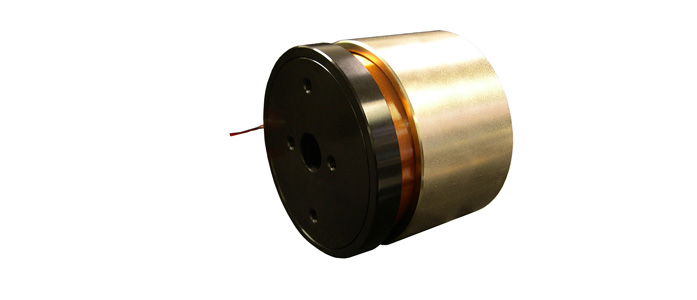

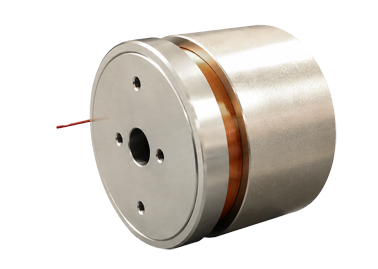

Linear Voice Coil Motor Actuator LVCM-070-038-01VAC, Vacuum Compatible, Continuous Force: 14.5 lb (64.6 N), Stroke: 0.50 in (12.7 mm)
 |
 |
 |
 |
| Housing Outside Diameter, 2.750 inch, 69.9 mm | ||||||||
|
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-070-038-01VAC | 0.50 | inch | 14.5 | lb | 45.9 | lb | 1.50 | inch |
Datasheet in PDF  |
12.7 | mm | 64.6 | N | 204.4 | N | 28.6 | mm |

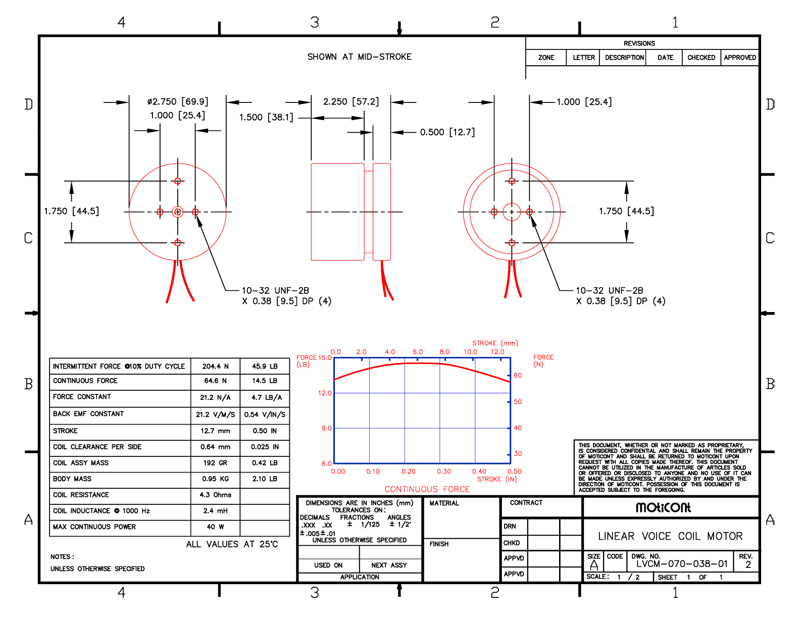

Drawing quick view
 |
Download 3D STEP | |||||||
