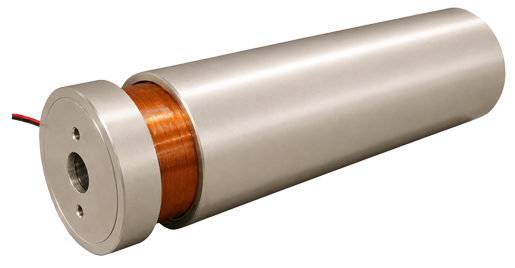

Linear Voice Coil Motor Actuator LVCM-051-165-02VAC, Vacuum Compatible, Continuous Force: 13.4 lb (59.4 N), Stroke: 2.50 in (63.5 mm)
 |
|
 |
 |
| Housing Outside Diameter, 2.000 inch, 50.8 mm | ||||||||
|
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-051-165-02VAC | 2.50 | inch | 13.4 | lb | 42.3 | lb | 6.50 | inch |
Datasheet in PDF  |
63.5 | mm | 59.4 | N | 187.8 | N | 165.1 | mm |

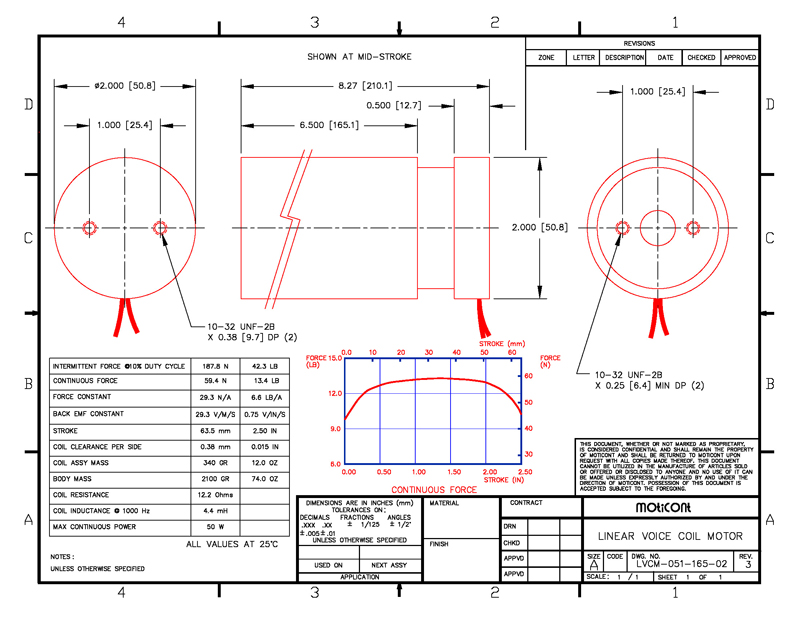

Drawing quick view
 |
Download 3D STEP | |||||||
