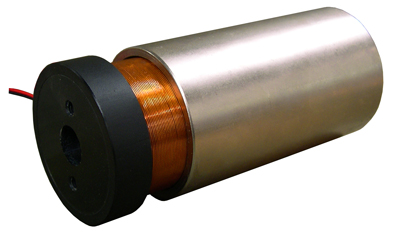

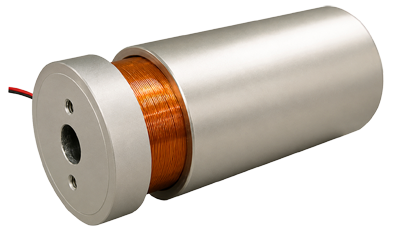

Linear Voice Coil Motor Actuator LVCM-051-089-01VAC, Vacuum Compatible, Continuous Force: 5.9 lb (26.2 N), Stroke: 2.25 in (57.2 mm)
 |
|
 |
 |
| Housing Outside Diameter, 2.000 inch, 50.8 mm | ||||||||
|
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-051-089-01VAC | 2.25 | inch | 5.9 | lb | 18.6 | lb | 3.50 | inch |
Datasheet in PDF  |
57.2 | mm | 26.2 | N | 82.7 | N | 88.9 | mm |

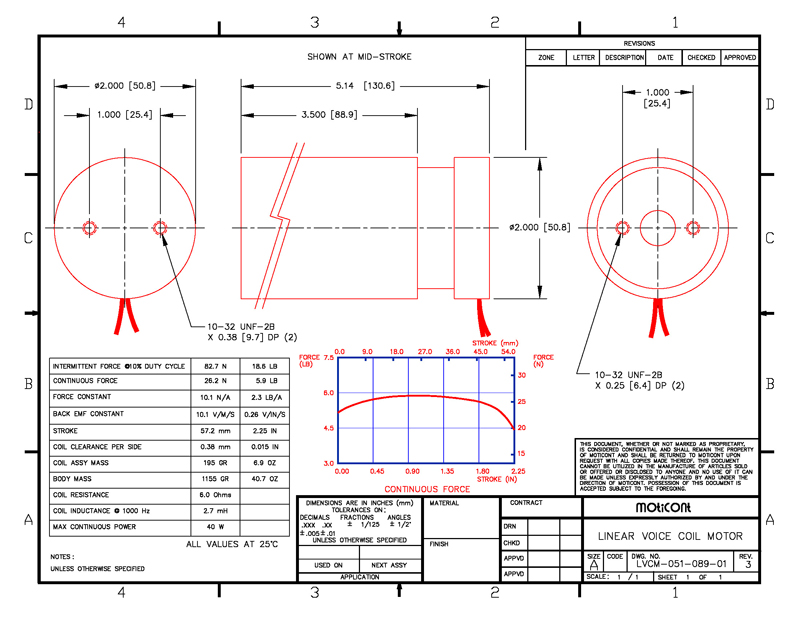

Drawing quick view
 |
Download 3D STEP | |||||||
