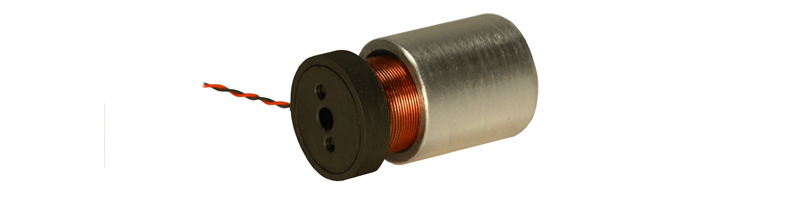

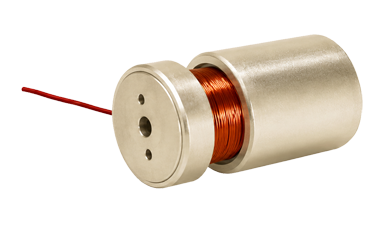

Linear Voice Coil Motor Actuator LVCM-044-051-02VAC, Vacuum Compatible, Continuous Force: 5.0 lb (22.3 N), Stroke: 1.25 in (31.8 mm)
 |
|
 |
 |
| Housing Outside Diameter, 1.750 inch, 44.4 mm | ||||||||
|
||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-044-051-02 | 1.25 | inch | 5.0 | lb | 15.8 | lb | 2.00 | inch |
Datasheet in PDF  |
31.8 | mm | 22.3 | N | 70.4 | N | 50.8 | mm |

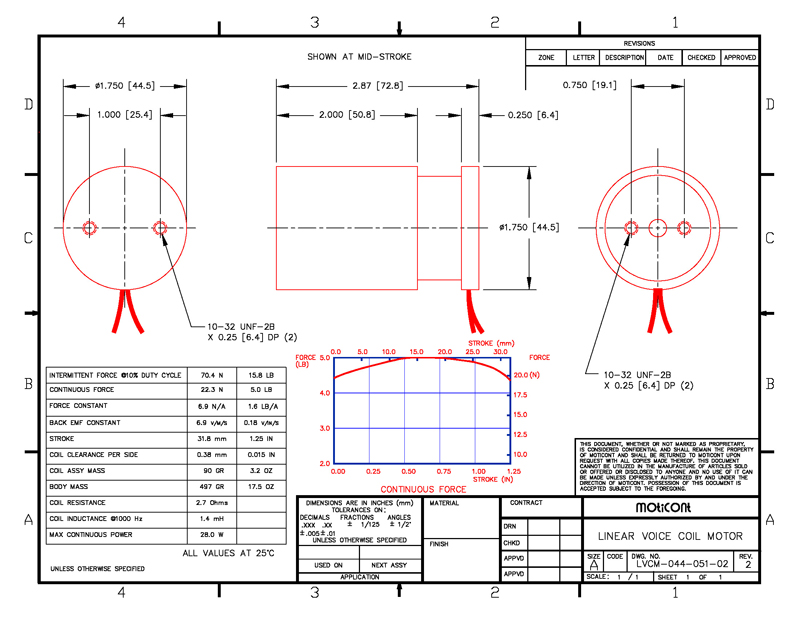

Drawing quick view
 |
Download 3D STEP | |||||||
