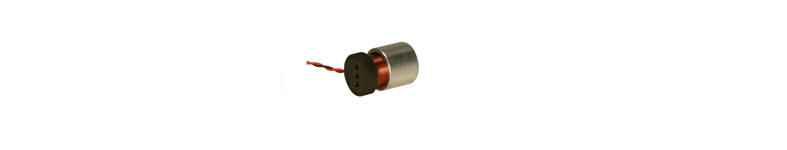

Linear Voice Coil Motor Actuator LVCM-016-013-01VAC, Vacuum Compatible, Continuous Force: 6.3 Oz (1.8 N), Stroke: 0.25 in (6.4 mm)
 |
 |
 |
| Housing Outside Diameter, 0.625 inch, 15.9 mm | ||||||||
|
|
||||||||
| Imperial Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-016-013-01VAC | 0.25 | inch | 6.3 | oz | 20.0 | oz | 0.500 | inch |
Datasheet in PDF  |
6.4 | mm | 1.8 | N | 5.6 | N | 12.7 | mm |

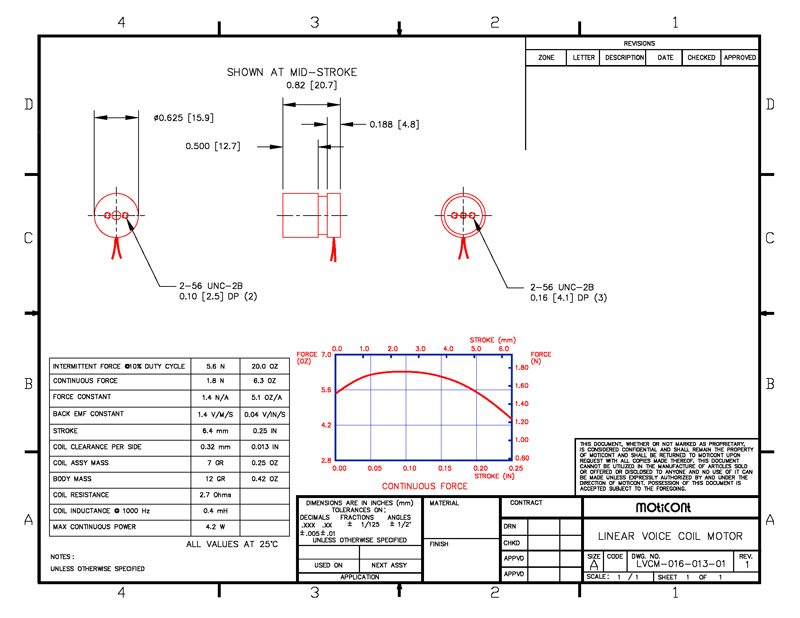

Drawing quick view
 |
Download 3D STEP |
|||||||
| ||||||||
| Metric Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||
| LVCM-016-013-01MVAC | 0.25 | inch | 6.3 | oz | 20.0 | oz | 0.500 | inch |
|
Datasheet in PDF |
6.4 | mm | 1.8 | N | 5.6 | N | 12.7 | mm |

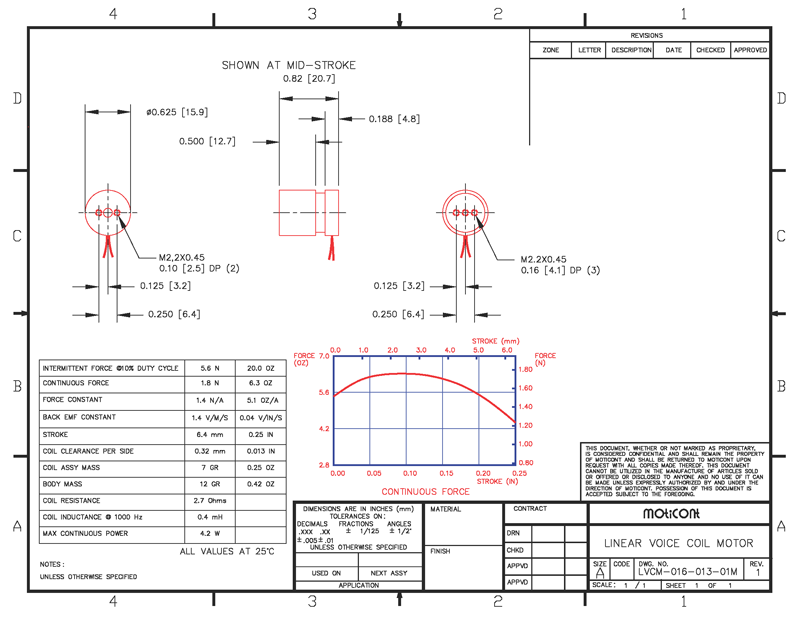

Drawing quick view
 |
Download 3D STEP |
|||||||
|
| ||||||||
