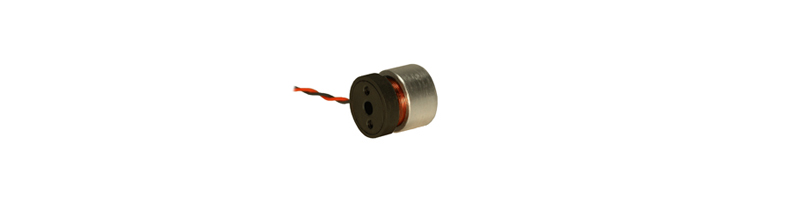

LVCM-022-013-01MVAC Vacuum-Compatible Linear Voice Coil Motor
Stroke: 0.25 in (6.4 mm) | Continuous Force: 14.5 Oz (4.0 N) | Intermittent Force: 45.7 Oz (12.7 N)

Housing Outside Diameter, 0.875 inch, 22.2 mm

Product Overview The LVCM-022-013-01MVAC is a vacuum-compatible linear voice coil motor designed for fast, precise, short-stroke motion in low-pressure equipment. Its compact housing measures 0.875 in (22.2 mm) in outside diameter and 0.500 in (12.7 mm) in length, while providing 0.25 in (6.4 mm) of linear travel. Performance and Vacuum-Compatible Construction The motor delivers 14.5 Oz (4.0 N) of continuous force and 45.7 Oz (12.7 N) of intermittent force at a 10% duty cycle. Its brushless, non-commutated direct-drive construction provides smooth bidirectional force, zero cogging, rapid acceleration and deceleration, quiet operation, and long service life. Motor force is proportional to coil current, and reversing the current reverses the direction of force and motion. Key Features • Vacuum-compatible linear voice coil motor • 0.25 in (6.4 mm) linear stroke • 14.5 Oz (4.0 N) continuous force • 45.7 Oz (12.7 N) intermittent force at 10% duty cycle • Compact 0.875 in (22.2 mm) housing diameter • Brushless, non-commutated operation with no cogging • Direct-drive force proportional to current • High acceleration, rapid reversal, and smooth force control Applications Typical applications include semiconductor and wafer-processing equipment, vacuum optical positioning, laser and electron-beam systems, thin-film and deposition equipment, inspection systems, aerospace test equipment, scientific instruments, and research apparatus requiring compact direct-drive linear motion. Vacuum-System Integration Confirm the required operating pressure, allowable outgassing, temperature range, bakeout procedure, cabling, and material compatibility against the product datasheet and the requirements of the vacuum system. Threaded mounting provisions support integration into new or existing equipment; refer to the mechanical drawing for exact thread sizes and dimensions. Mechanical Guidance and Closed-Loop Control The LVCM-022-013-01MVAC generates linear force but does not provide its own mechanical guidance. The moving and stationary components must be supported by an external bearing, flexure, slide, or other guidance mechanism. For closed-loop position or velocity control, combine the motor with a vacuum-compatible position sensor, servo controller, and current amplifier. Final accuracy and repeatability depend on the sensor, guidance system, load, structural stiffness, controller, and servo tuning.

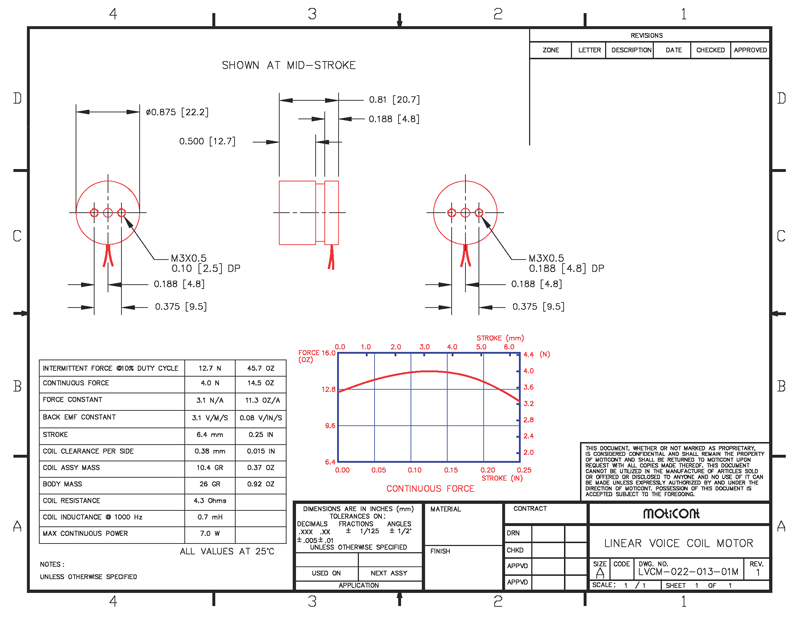

The miniature LVCM-022-013-01MVAC Linear Voice Coil Actuator has 22.2 mm (0.875 in.) in diameter and at mid-stroke just 20.7 mm (0.81 in.) long, this metric miniature voice coil actuator has a continuous force of 4.0 N (14.5 oz) and a peak force of 12.7 N (45.7 oz), and features a 6.4 mm (0.25 in.) stroke. A true miniature brushless DC servo motor, the LVCM-022-013-01MVAC Linear Voice Coil Actuator has high acceleration/deceleration and low inertia. Because this miniature brushless servo motor is clean, has high speed, zero cogging, and is highly efficient, Additionally the metric LVCM-016-010-01VAC Linear Actuator features very high accuracy and repeatability when operated as a DC servo motor in a closed servo loop. Each end of this linear actuator has two M3X0.5 threaded mounting holes in the housing and two M3X0.5 threaded mounting holes in the coil end on 9.5 mm (0.375 in.) centers for easy integration into new and existing applications.
Metric Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
LVCM-022-013-01MVAC	0.25	inch	14.5	oz	45.7	oz	0.500	inch
Datasheet in PDF	6.4	mm	4.0	N	12.7	N	12.7	mm

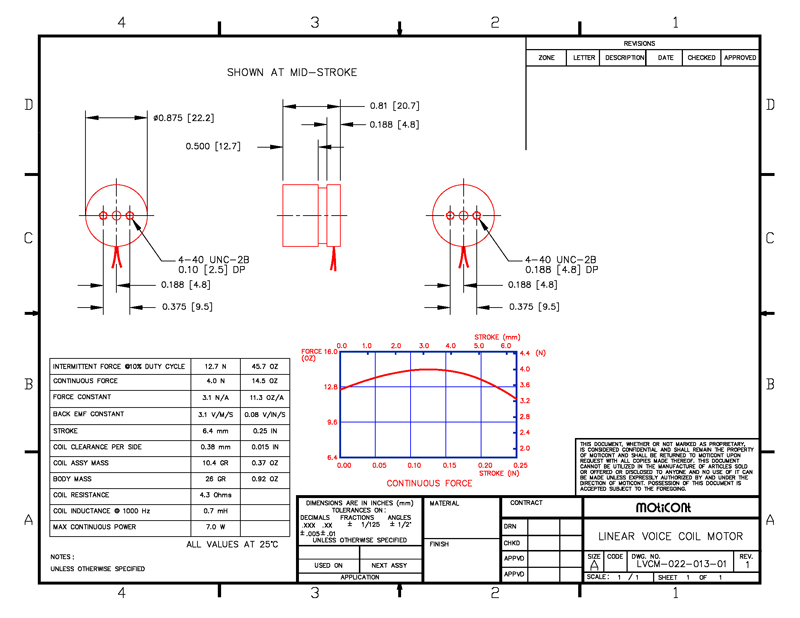

Drawing quick view	Download 3D STEP
