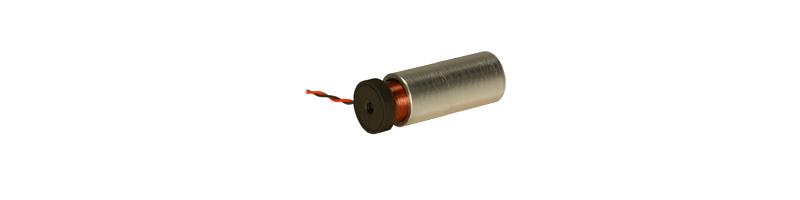

LVCM-019-048-02VAC Vacuum-Compatible Linear Voice Coil Motor
Stroke: 1.5 in (38.1 mm) | Continuous Force: 7.4 Oz (2.1 N) | Intermittent Force: 23.5 Oz (6.5 N)
 |
|
 |
 |
| Housing Outside Diameter, 0.750 inch, 19.1 mm | ||||||||||
|
||||||||||
Product OverviewThe LVCM-019-048-02VAC is a vacuum-compatible linear voice coil motor designed for fast, precise, short-stroke motion in low-pressure equipment. Its compact housing measures 0.750 in (19.1 mm) in outside diameter and 1.875 in (47.6 mm) in length, while providing 1.5 in (38.1 mm) of linear travel.Performance and Vacuum-Compatible ConstructionThe motor delivers 7.4 Oz (2.1 N) of continuous force and 23.5 Oz (6.5 N) of intermittent force at a 10% duty cycle. Its brushless, non-commutated direct-drive construction provides smooth bidirectional force, zero cogging, rapid acceleration and deceleration, quiet operation, and long service life. Motor force is proportional to coil current, and reversing the current reverses the direction of force and motion.Key Features• Vacuum-compatible linear voice coil motor• 1.5 in (38.1 mm) linear stroke • 7.4 Oz (2.1 N) continuous force • 23.5 Oz (6.5 N) intermittent force at 10% duty cycle • Compact 0.750 in (19.1 mm) housing diameter • Brushless, non-commutated operation with no cogging • Direct-drive force proportional to current • High acceleration, rapid reversal, and smooth force control ApplicationsTypical applications include semiconductor and wafer-processing equipment, vacuum optical positioning, laser and electron-beam systems, thin-film and deposition equipment, inspection systems, aerospace test equipment, scientific instruments, and research apparatus requiring compact direct-drive linear motion.Vacuum-System IntegrationConfirm the required operating pressure, allowable outgassing, temperature range, bakeout procedure, cabling, and material compatibility against the product datasheet and the requirements of the vacuum system. Threaded mounting provisions support integration into new or existing equipment; refer to the mechanical drawing for exact thread sizes and dimensions.Mechanical Guidance and Closed-Loop ControlThe LVCM-019-048-02VAC generates linear force but does not provide its own mechanical guidance. The moving and stationary components must be supported by an external bearing, flexure, slide, or other guidance mechanism. For closed-loop position or velocity control, combine the motor with a vacuum-compatible position sensor, servo controller, and current amplifier. Final accuracy and repeatability depend on the sensor, guidance system, load, structural stiffness, controller, and servo tuning. |
||||||||||
|
The LVCM-019-048-02VAC Linear Voice Coil Motor is a
true servo motor featuring zero cogging, high
accuracy, and high repeatability when operated in a
closed position loop. The Voice Coil Motor (also referred to as actuator) is clean, quiet, efficient, brushless high speed linear servo motor. This small LVCM-019-048-02VAC actuator has a 1.500 in (38.1 mm) stroke length , 0.750 in. (19.1 mm) diameter, and a high-force-to-size ratio of 7.4 oz (2.1 N) and a peak force of 23.5 oz. (6.5 N) at 10% duty cycle. This efficient, low inertia, high acceleration, brushless, high speed linear motor has zero cogging and features high accuracy, and high repeatability. The motor features an 8-32 UNC-2B threaded mounting hole in the center of the housing and on the coil end to easily integrate into new or existing applications. |
||||||||||
| Model # | Stroke | Continuous Force | Intermittent Force @ 10% Duty Cycle | Housing Length | ||||||
| LVCM-019-048-02VAC | 1.5 | inch | 7.4 | oz | 23.5 | oz | 1.875 | inch | ||
Datasheet in PDF
 |
38.1 | mm | 2.1 | N | 6.5 | N | 47.6 | mm | ||

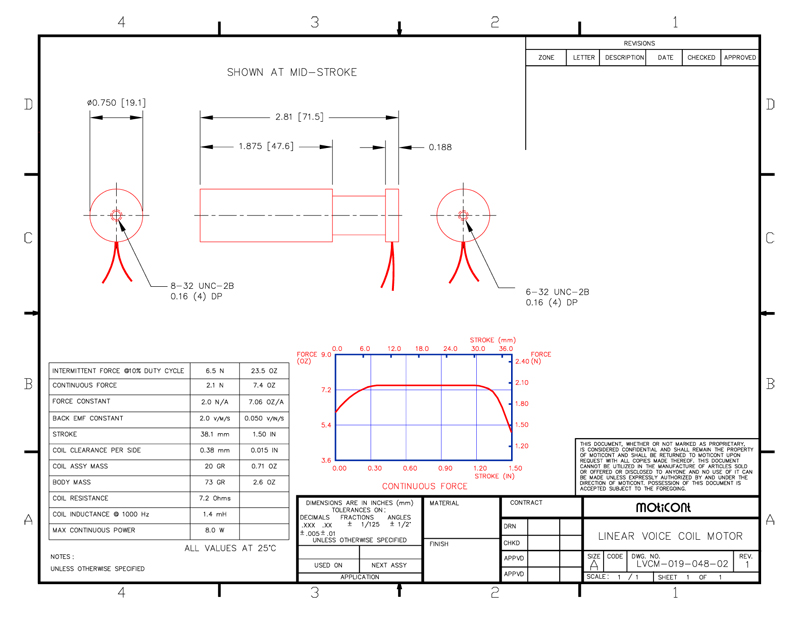

Drawing quick view
 |
Download 3D STEP | |||||||||
