HVCM-025-022-003-01 Hollow Core Linear Voice Coil Motor
Stroke: 0.375 in. (9.5 mm), Continuous Force: 16.9 oz (4.7 N), Aperture: 0.125 in. (3.2 mm)




Previous Buy Online View Cart Next
Housing Outside Diameter, 1.000 inch, 25.4 mm

HVCM-025-022-003-01 hollow core linear voice coil motor with 3.2 mm aperture

This 12.7 mm (0.500 in.) stroke compact linear servo motor with built-in shaft and bearing is just 31.8 mm (1.250 in.) in diameter. The housing is only 25.4 mm (1.000 in.) long and combined with the coil end the total length is 34.95 mm (1.375 in.). In the fully extended position, the 3.175 mm (0.125 in.) diameter shaft extends 15.9 mm (0.625 in) beyond the face of the housing. The shaft has a M2.2X0.45 x 5.1 mm deep thread, and the housing and coil ends have two M3.5X0.6 mounting holes on a 12.7 mm (0.500 in.) bolt circle for easy integration into new or existing applications.

Also referred to as an electric cylinder, this compact linear servo actuator features a continuous high-force-to-size ratio of 9.3 N (2.1 lb.) and 29.3 N (6.6 lb.) of peak force at a 10 percent duty cycle.

Featuring: High reliability, high speed, zero cogging, high acceleration/deceleration, and when used in a servo loop, very high accuracy and repeatability, these non-commutated, brushless linear servo motors are clean and quiet. They are an ideal choice for: Haptic feedback, pipetting, medical devices, laser machining and drilling, work holding and clamping, scanners, laser beam steering and filtering, optical focusing, dynamic vibration absorption, testing, sorting, and assembly.

Product Overview

The HVCM-025-022-003-01 is a hollow core linear voice coil motor designed for fast, precise, short-stroke motion. Its 0.125 in. (3.2 mm) clear through-aperture allows optical beams, illumination, wiring, tubing, or other components to pass through the center of the actuator.

Performance and Construction

The actuator measures 1.000 in. (25.4 mm) in outside diameter with a 0.875 in. (22.2 mm) housing length. It provides a 0.375 in. (9.5 mm) stroke, 16.9 oz (4.7 N) of continuous force, and 53.5 oz (14.9 N) of intermittent force at a 10% duty cycle. Its non-commutated brushless direct-drive construction provides smooth bidirectional force, zero cogging, quiet operation, rapid acceleration and deceleration, and long service life.

Key Features

• 0.125 in. (3.2 mm) clear through-aperture
• Compact 1.000 in. (25.4 mm) housing outside diameter
• 0.375 in. (9.5 mm) linear stroke
• 16.9 oz (4.7 N) continuous force
• 53.5 oz (14.9 N) intermittent force at 10% duty cycle
• Brushless, non-commutated operation with no cogging
• Direct-drive motion with zero mechanical backlash when coupled directly to the load
• Fast response, high acceleration, and smooth force control

Applications

Optical and Laser Systems: Optical focusing, beam steering, scanning, illumination, laser drilling, cutting, welding, and machining.
Medical and Laboratory Equipment: Diagnostic instruments, haptic feedback, testing systems, sampling, and precision positioning.
Semiconductor and Industrial Automation: Wafer handling, inspection, short-stroke positioning, dynamic vibration absorption, precision assembly, and automated test equipment.

Mechanical Integration and Closed-Loop Control

The actuator includes threaded mounting provisions for integration into new or existing equipment; refer to the mechanical drawing for the applicable thread size, bolt circle, and mounting depth. For closed-loop position or velocity control, the motor can be combined with an appropriate position sensor, mechanical guidance system, servo controller, and current amplifier. Final positioning accuracy and repeatability depend on the sensor, guidance mechanism, load, structural stiffness, controller, and servo tuning.
Model # Stroke Continuous Force Intermittent Force @ 10% Duty Cycle Housing Length Through Hole Dia.
HVCM-025-022-003-01 0.375 inch 16.9 oz 53.5 oz 0.875 inch 0.125 inch
Datasheet in PDF Download in PDF 9.5 mm 4.7 N 14.9 N 22.2 mm 3.2 mm

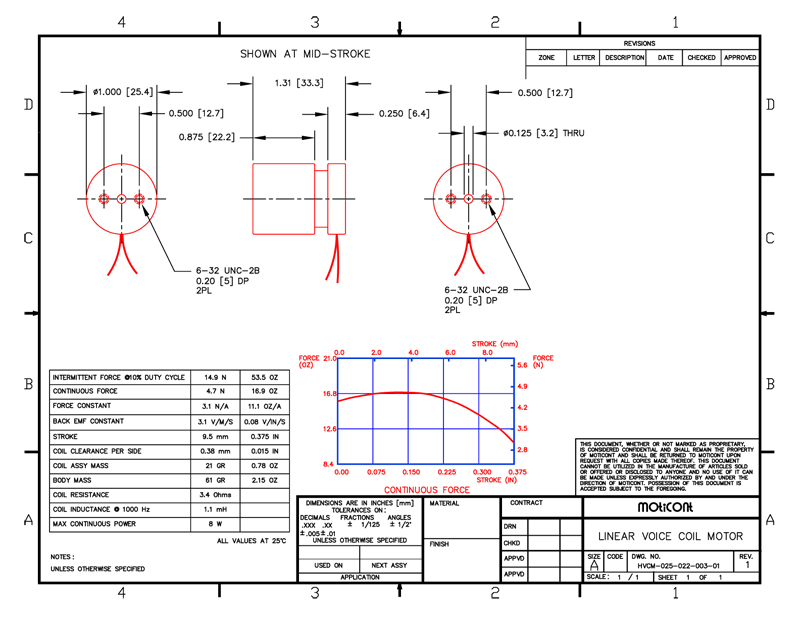

Drawing quick view HVCM-025-022-003-01 mechanical drawing Download 3D STEP
