HVCM-016-010-003-01 Hollow Core Linear Voice Coil Motor Continuous Force: 5.0 oz (1.4 N), Stroke: 0.125 in (3.2 mm), Aperture: 0.125 in (3.2 mm)

Housing Outside Diameter, 0.625 inch, 15.9 mm

Product Overview The HVCM-016-010-003-01 is a compact hollow core linear voice coil motor designed for fast, precise, short-stroke motion. Its 0.125 in. (3.2 mm) clear through-aperture allows optical beams, illumination, wiring, tubing, or other components to pass through the center of the actuator. Performance and Construction Measuring only 0.625 in. (15.9 mm) in outside diameter and 0.375 in. (9.5 mm) in housing length, this miniature actuator provides a 0.125 in. (3.2 mm) stroke, 5.0 oz (1.4 N) of continuous force, and 15.7 oz (4.4 N) of intermittent force at a 10% duty cycle. Its non-commutated brushless construction provides smooth bidirectional force, zero cogging, quiet operation, high acceleration and deceleration, and long service life. Key Features • 0.125 in. (3.2 mm) clear through-aperture • Compact 0.625 in. (15.9 mm) outside diameter • 0.125 in. (3.2 mm) linear stroke • 5.0 oz (1.4 N) continuous force • 15.7 oz (4.4 N) intermittent force at 10% duty cycle • Brushless, non-commutated operation with no cogging • Direct-drive motion with zero mechanical backlash when coupled directly to the load • High acceleration, rapid reversal, and smooth force control Applications Optical and Laser Systems: Optical focusing, beam steering, scanning, illumination, laser drilling, cutting, welding, and machining. Medical and Laboratory Equipment: Diagnostic instruments, haptic feedback, testing systems, sampling, and precision positioning. Semiconductor and Industrial Automation: Wafer handling, inspection, short-stroke positioning, dynamic vibration absorption, and precision assembly. Mechanical Integration and Closed-Loop Control Two threaded mounting holes are provided on a 0.250 in. (6.4 mm) bolt circle in both the housing and coil ends for integration into new or existing equipment. The Imperial model uses 2-56 UNC-2B threads, and the metric version uses M2.2 x 0.45 threads. For closed-loop position or velocity control, the motor can be combined with an appropriate position sensor, mechanical guidance system, servo controller, and current amplifier. Final accuracy and repeatability depend on the sensor, guidance mechanism, load, structural stiffness, and servo tuning.
Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length		Through Hole Dia.
HVCM-016-010-003-01	0.125	inch	5.0	oz	15.7	oz	0.375	inch	0.125	inch
Datasheet in PDF	3.2	mm	1.4	N	4.4	N	9.5	mm	3.2	mm

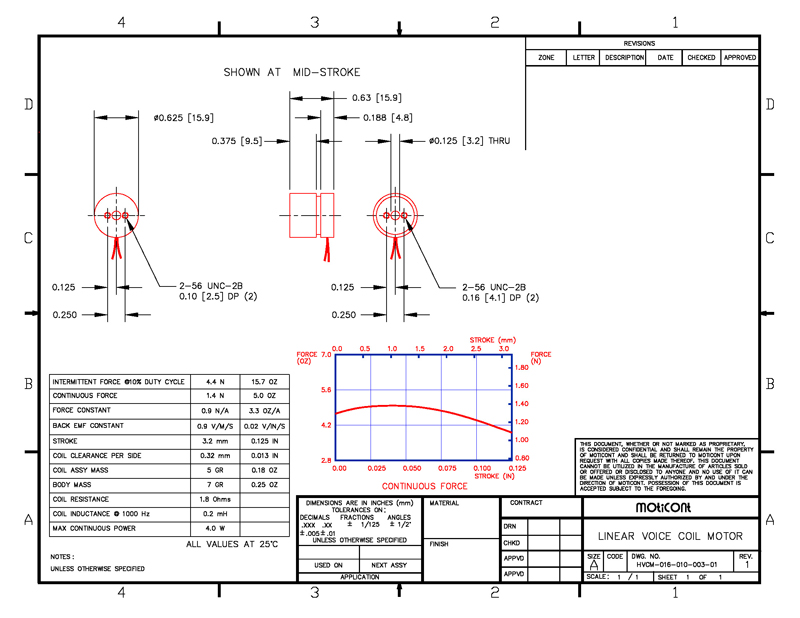

Drawing quick view	Download 3D STEP
