HCDS-051-032-01 Hollow Core Linear Voice Coil Stage Series

Series Overview

The HCDS-051-032-01 series consists of direct-drive hollow core linear voice coil stages engineered for rapid, precise, and repeatable positioning. The guided moving table surrounds a central aperture, allowing optical beams, illumination, wiring, tubing, or other components to pass through the stage.

Key Benefits

• Direct-drive motion with zero mechanical backlash and no cogging
• Integrated linear guidance for a ready-to-use positioning stage
• Quadrature optical encoder feedback and built-in home switch
• Multiple aperture, force, travel, bearing, and encoder-resolution configurations
• High acceleration, rapid settling, quiet operation, and long service life
• Pre-drilled mounting features for straightforward installation

Applications

Typical uses include optical focusing, laser beam steering, mirror positioning, scanning, switching, inspection, alignment, metrology, medical instrumentation, laboratory automation, vibration control, precision assembly, and research systems.

Selecting a Model

Use the model listings below to compare range of motion, continuous and intermittent force, aperture diameter, bearing configuration, encoder resolution, and connection options. Review the individual product page and datasheet before selecting a controller, amplifier, cable, or return-spring option.

Videos of Motorized Linear Stages:

Low Cost MULTI-AXIS Motorized Linear Stages

Two-axis Voice Coil Motor Stage by MOTICONT

SINGLE-AXIS Positioning Linear Motor Stage by MOTICONT

			Hollow Core Linear Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch Range of Motion: 0.97” (24.6 mm) Efficient Force within First 0.750" (19.1 mm) of Stroke Positioning Resolution: 1 micron Continuous Force: 6.3 lb (28.2 N) Intermittent Force: 20.0 lb (89.9 N) at 10% duty cycle Optional Return Spring Cross Roller Bearing Quadrature Optical Encoder with Differential Outputs Built-in Home Switch Cable is not included and is sold separately Optional cables CBL-01 or CBL-04
HCDS-051-032-013-01-B1-01	Enlarge

			Hollow Core Linear Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch Range of Motion: 0.97” (24.6 mm) Efficient Force within First 0.750" (19.1 mm) of Stroke Positioning Resolution: 1 micron Continuous Force: 4.9 lb (22.0 N) Intermittent Force: 15.7 lb (69.6 N) at 10% duty cycle Optional Return Spring Cross Roller Bearing Quadrature Optical Encoder with Differential Outputs Built-in Home Switch Cable is not included and is sold separately Optional cables CBL-01 or CBL-04
HCDS-051-032-019-01-B1-01	Enlarge

			Hollow Core Linear Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch Range of Motion: 0.97” (24.6 mm) Efficient Force within First 0.750" (19.1 mm) of Stroke Positioning Resolution: 29.95 microns Continuous Force: 6.3 lb (28.2 N) Intermittent Force: 20.0 lb (89.9 N) at 10% duty cycle Optional Return Spring Linear Ball Bearing Quadrature Optical Encoder with Differential Outputs Built-in Home Switch Cable is not included and is sold separately Optional cables CBL-01 or CBL-04
HCDS-051-032-013-01-B1-30	Enlarge

			Hollow Core Linear Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch Range of Motion: 0.97” (24.6 mm) Efficient Force within First 0.750" (19.1 mm) of Stroke Positioning Resolution: 29.95 microns Continuous Force: 4.9 lb (22.0 N) Intermittent Force: 15.7 lb (69.6 N) at 10% duty cycle Optional Return Spring Linear Ball Bearing Quadrature Optical Encoder with Differential Outputs Built-in Home Switch Cable is not included and is sold separately Optional cables CBL-01 or CBL-04

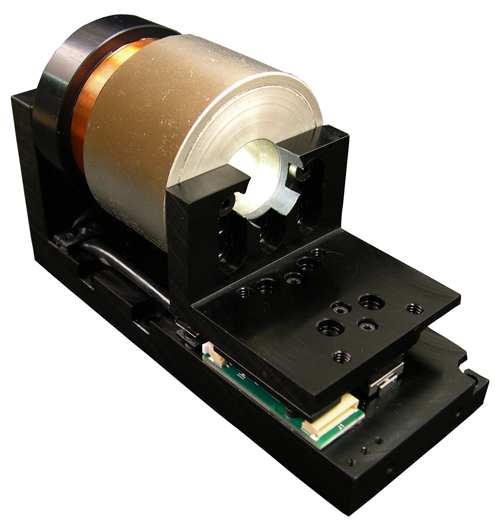

HCDS-051-032-019-01-B1-30	Enlarge

			Hollow Core Linear Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch Range of Motion: 0.97” (24.6 mm) Efficient Force within First 0.750" (19.1 mm) of Stroke Positioning Resolution: 1 micron Continuous Force: 6.3 lb (28.2 N) Intermittent Force: 20.0 lb (89.9 N) at 10% duty cycle Optional Return Spring Cross Roller Bearing Quadrature Optical Encoder with Differential Outputs Built-in Home Switch Cable is not included and is sold separately Optional cables CBL-01 or CBL-04
HCDS-051-032-013-01-F1-01	Enlarge

			Hollow Core Linear Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch Range of Motion: 0.97” (24.6 mm) Efficient Force within First 0.750" (19.1 mm) of Stroke Positioning Resolution: 1 micron Continuous Force: 4.9 lb (22.0 N) Intermittent Force: 15.7 lb (69.6 N) at 10% duty cycle Optional Return Spring Cross Roller Bearing Quadrature Optical Encoder with Differential Outputs Built-in Home Switch Cable is not included and is sold separately Optional cables CBL-01 or CBL-04
HCDS-051-032-019-01-F1-01	Enlarge

			Hollow Core Linear Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch Range of Motion: 0.97” (24.6 mm) Efficient Force within First 0.750" (19.1 mm) of Stroke Positioning Resolution: 29.95 microns Continuous Force: 6.3 lb (28.2 N) Intermittent Force: 20.0 lb (89.9 N) at 10% duty cycle Optional Return Spring Linear Ball Bearing Quadrature Optical Encoder with Differential Outputs Built-in Home Switch Cable is not included and is sold separately Optional cables CBL-01 or CBL-04
HCDS-051-032-013-01-F1-30	Enlarge

			Hollow Core Linear Voice Coil Driven Stage with Quadrature Position Sensor and Home Switch Range of Motion: 0.97” (24.6 mm) Efficient Force within First 0.750" (19.1 mm) of Stroke Positioning Resolution: 29.95 microns Continuous Force: 4.9 lb (22.0 N) Intermittent Force: 15.7 lb (69.6 N) at 10% duty cycle Optional Return Spring Linear Ball Bearing Quadrature Optical Encoder with Differential Outputs Built-in Home Switch Cable is not included and is sold separately Optional cables CBL-01 or CBL-04
HCDS-051-032-019-01-F1-30	Enlarge
