Linear Motor with Internal Shaft & Bearing, GVCM-095-064-02S06
Continuous Force: 44.9 lb (199.1 N), Stroke: 0.50 in (12.7 mm)

Housing Outside Diameter, 3.750 inch, 95.3 mm

6 mm Diameter Shaft Model #	Stroke		Continuous Force		Intermittent Force @ 10% Duty Cycle		Housing Length
GVCM-095-064-02S06	0.50	inch	44.9	lb	141.8	lb	2.50	inch
Datasheet in PDF	12.7	mm	199.1	N	629.2	N	63.5	mm

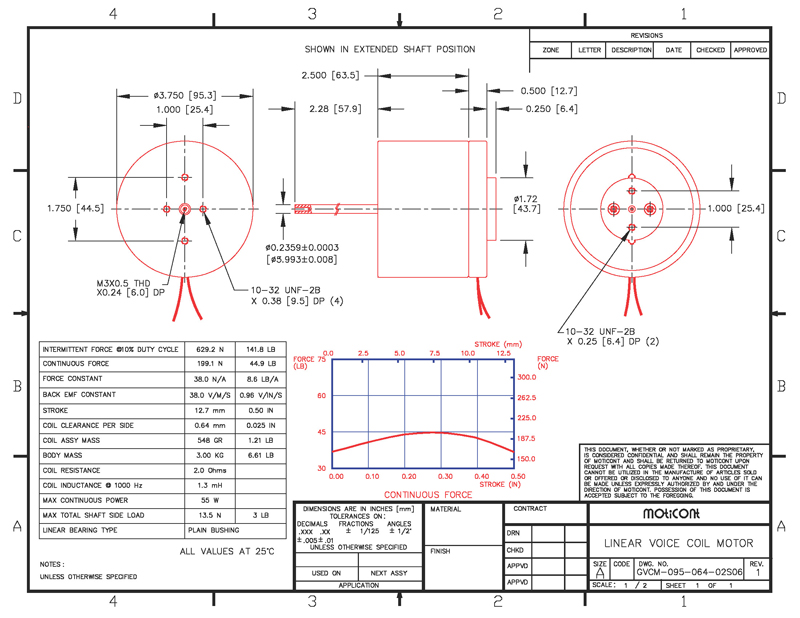

Drawing quick view	Download 3D STEP
