The

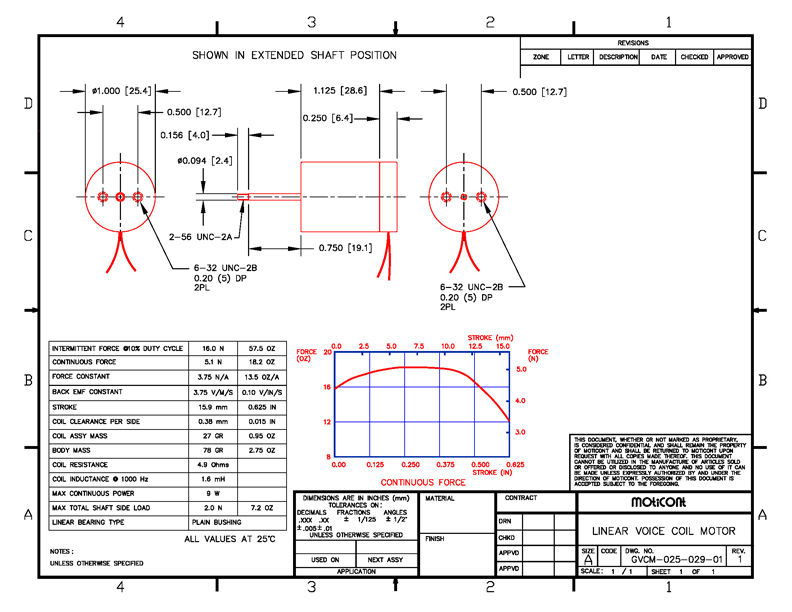

GVCM-025-029-01 DC motor has a stroke length of 0.625 in. (15.9 mm) a mid-stroke
length of 1.68 in. (43 mm) with a continuous force of 18.2 oz (5.1 N) and a peak
force of 57.7 oz. (16.0 N) at 10% duty cycle.
These high-force-to-size ratio motors are suitable for work holding and
clamping, medical devices, assembly, testing, laser machining and drilling,
wafer handling, optical focusing, dynamic vibration absorption, scanners and
laser beam steering and filtering.
The efficient high-speed linear motors have zero cogging and feature high
accuracy, and high repeatability when operated in a closed loop as a dc servo
motor. Each of these motors features a 10-32 UNC-2B threaded mounting hole in
the center of the housing and two 6-32-UNC-2B threaded mounting holes on the
coil end to simplify addition of these motors to new or existing applications.
|
