Linear Brushless Ironless Motors, LBIM-032-03




Previous Next

Drawing in PDFDatasheet in PDF

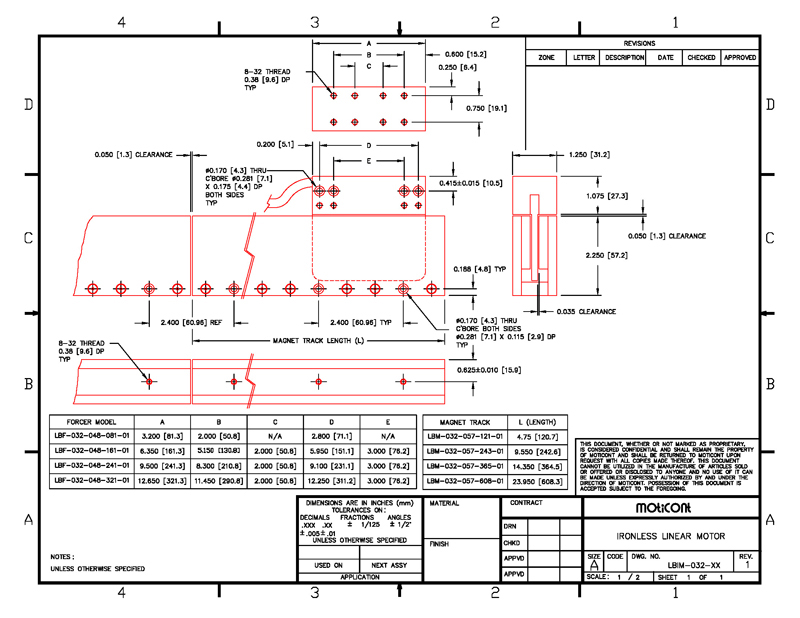

Datasheet in PDF Drawing quick viewMechanical Drawing

GENERAL SPECIFICATIONS

Intermittent Force @ 10% Duty Cycle

81.0

lb

360.4

N

Continuous Force @ 25 °C

25.6

lb

113.9

N

Continuous Force @ Tmax

21.8

lb

97.0

N

Continuous Power

95

W

Motor Constant

2.6

lb/W^0.5

11.7

N/ W^0.5

Coil Assembly Length

9.5

in

241

mm

ELECTRICAL SPECIFICATIONS

Peak Current  @ 10% Duty Cycle

10.7

A

Continuous Current @ Tmax

2.9

A

Force Constant

7.6

lb/A

33.4

N/A

Back EMF

0.6

V/in/s

33.4

V/m/s

Resistance @ 25 °C

8.3 Ohm
Inductance @ 1 KHz 2.9 mH
Part No. Description

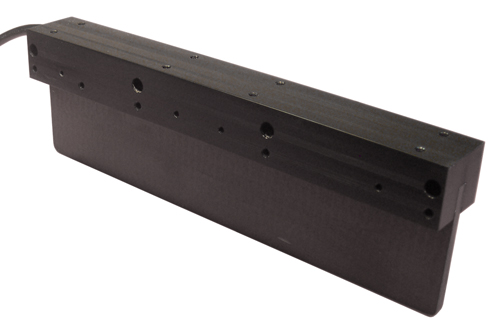

LBF-032-048-241-01 Forcer, Continuous: Force 25.6 lb (113.9 N), Intermittent Force @ 10% Duty Cycle: 81.0 lb (360.4 N)


One or a combination of the following magnetic tracks is required.
Part No. Description
LBM-032-057-121-01 Magnetic Track, Length: 4.75 in (121 mm), Width: 1.25 in, (32 mm), Height:2.25 in (57 mm)

LBM-032-057-243-01 Magnetic Track, Length: 9.55 in (243 mm), Width: 1.25 in, (32 mm), Height:2.25 in (57 mm)

LBM-032-057-365-01 Magnetic Track, Length: 14.35 in (365 mm), Width: 1.25 in, (32 mm), Height:1.50 in (57 mm)

LBM-032-057-608-01 Magnetic Track, Length: 23.95 in (608 mm), Width: 1.25 in, (32 mm), Height:1.50 in (57 mm)
